Where Do Garage Door Sensors Get Power From?

Most people don’t think about how their garage door sensors get power until the door stops closing and they’re standing there pressing the button like it’s going to change something. I’ve been on calls where a homeowner spent two hours troubleshooting, convinced the sensors were dead, only to find out they were unplugged from the motor unit. It happens more than you’d think. So where do those little black eyes actually get their juice? The short answer is: they draw power directly from the garage door opener’s motor unit through low-voltage wiring. No batteries, no separate outlet, no mystery. But there’s a lot more to it than that.

Key Takeaways:

Garage door sensors are powered by the opener’s motor unit via low-voltage wires, typically 12 to 24 volts DC.
They do not have their own power source or battery backup unless specifically designed for it.
Wiring issues, not sensor failure, cause most power-related problems.
Understanding this helps you troubleshoot faster and avoid unnecessary replacements.

The Simple Path: How Power Actually Gets to the Sensors

Let’s cut through the confusion. Every modern garage door opener has a terminal block or screw terminals on the back or side of the motor unit. You’ll see two or three small screws labeled things like “SENSOR,” “SAFETY,” or “IR.” That’s where the power originates. The opener’s internal transformer steps down the 120-volt household current to a much lower voltage—usually around 12 to 24 volts DC. That low-voltage power travels down a two-wire cable (sometimes three-wire if there’s a separate ground) that runs along the ceiling, down the wall, and connects to each sensor.

The sensors themselves are just infrared transmitters and receivers. One sends a beam, the other receives it. Both need power to do their job. That power comes from the same low-voltage circuit. So when someone tells me their sensor “died,” I always start by checking the connection at the opener first. Nine times out of ten, it’s a loose wire or a chewed-through cable from a mouse or a curious pet.

Why No Batteries?

You’d think a backup battery would be standard, but it’s not. Garage door sensors are designed to be always-on devices as long as the opener has power. The logic is simple: if the house loses power, the opener won’t work anyway, so the sensors don’t need independent power. That said, some newer high-end openers include battery backups for the whole system, which means the sensors stay powered during an outage. But that’s the exception, not the rule. If you’ve got a standard opener from any major brand—Chamberlain, LiftMaster, Genie, Craftsman—your sensors are tied to the main unit.

The Wiring That Bites People

Here’s where experience comes in. I’ve seen more sensor issues caused by bad wiring than by actual sensor failure. The wires are thin—usually 22-gauge or similar—and they run through some rough environments. Attics get hot. Walls get drilled. Cables get pinched. And the most common mistake? People strip too much insulation off the wire and the bare copper touches the other terminal, shorting the circuit. That kills power to both sensors instantly.

Another classic: someone replaces a sensor but uses the old wiring, not realizing the wire has a break somewhere inside the wall. The new sensor works for a day, then stops. They blame the sensor again. But it’s the wiring. If you’re troubleshooting and the sensor LED is off completely, don’t replace the sensor yet. Check voltage at the sensor terminals with a multimeter. If you see 0 volts, the problem is upstream. If you see proper voltage (usually around 12V DC) but no LED, then yeah, the sensor might be bad.

Tools You’ll Actually Need

A multimeter is your best friend here. I always tell customers to grab a cheap one from any hardware store. You don’t need a Fluke for this job. Set it to DC voltage, touch the probes to the sensor terminals, and read the number. If it’s below 10 volts, you’ve got a voltage drop issue—likely from corrosion or a poor connection. If it’s zero, trace back to the opener.

You’ll also want wire strippers, not scissors. Scissors nick the wire and create weak points. And a small flathead screwdriver for the terminal screws. That’s it. Most sensor power problems are solved with those three tools.

Common Mistakes That Cost Time and Money

I’ve lost count of how many people buy new sensors when the old ones were fine. The real culprit is often a misalignment. The sensors have to face each other perfectly. Even a slight bump from a broom or a box can knock one out of alignment. The power is still there, but the beam doesn’t connect. The opener interprets that as a safety fault and won’t close. People see the LED blinking and assume the sensor is dead. Nope. It’s just looking at the wall.

Another mistake: assuming both sensors are identical. They’re not. One is the sender (usually has a steady LED), and the other is the receiver (LED blinks or stays solid depending on alignment). Swapping them without checking the label will cause a no-power situation because the receiver won’t respond to the wrong signal. Always mark them during installation.

When the Advice Doesn’t Apply

If you’ve got an older opener from the 80s or early 90s, it might not have safety sensors at all. Those were mandated by law in the U.S. starting in 1993. So if your house was built before that and the opener is original, you might not have sensors. In that case, power isn’t the issue—compliance is. You should upgrade for safety, but that’s a different conversation.

Also, some commercial or heavy-duty openers use different wiring schemes. The power might come from a separate control board or a dedicated transformer. If you’re working on a commercial unit, don’t assume the same rules apply. Residential is straightforward. Commercial can get weird.

The Trade-Off Between DIY and Calling a Pro

Let’s be honest: checking sensor power is a DIY-friendly task. If you can use a screwdriver and a multimeter, you can fix most issues in 20 minutes. But there’s a line. If the wiring runs through an attic and you’re crawling around in 140-degree heat, or if the wires are buried in drywall, it’s worth calling someone. I’ve seen DIYers spend three hours trying to fish a wire through a finished wall, only to give up and call us anyway. That’s time and frustration you don’t get back.

In Atlanta, we deal with a lot of older homes in neighborhoods like Virginia-Highland or Decatur where the wiring was done decades ago and not always to code. The insulation on those old wires gets brittle. A simple sensor check can turn into a full rewiring job. If you’re not comfortable with that, hire a pro. It’s not about skill; it’s about knowing when the job changes scope.

Cost Considerations

A new sensor pair costs around $10 to $20 online. A service call from a professional will run you $75 to $150 just for the visit, plus parts. So if you’re handy, DIY makes sense. But if you’re replacing sensors and the problem persists, you’ve wasted $20 and an afternoon. At that point, the $75 trip fee starts looking like a bargain.

I’ve also seen people buy universal sensors that don’t match their opener’s voltage. That’s a mistake. Always check the specs. Most residential openers use 12V DC, but some older Genie models use 24V AC. Plugging a 12V DC sensor into a 24V AC circuit will fry it instantly. Read the manual. Or just call us.

Real-World Scenario: The Case of the Intermittent Sensor

I had a customer in Buckhead who called because their door would close fine for a week, then suddenly stop working. They’d jiggle the wires and it would work again. Classic loose connection. I checked the voltage at the sensor—11.8V DC, fine. But when I wiggled the wire at the opener terminal, the voltage dropped to zero. The screw was tight, but the wire had a tiny break right at the terminal. I cut off half an inch, stripped fresh wire, and reconnected. Problem solved. Took five minutes. The customer had already ordered new sensors online. I saved them $20 and an hour of frustration.

That’s the kind of thing you only learn by doing. The sensors themselves are robust. The wiring is the weak link. Treat it like the fragile component it is, and you’ll have fewer headaches.

When Professional Help Actually Saves You

Sometimes the issue isn’t power at all. It’s the opener’s logic board. If the board isn’t sending power to the sensor terminals, no amount of wiring fixes will help. That’s a board replacement or a new opener. I’ve seen people chase sensor problems for weeks when the opener was the root cause. A professional can diagnose that in minutes with a simple voltage test at the board.

Also, if you’ve got a garage door that’s older than 15 years, the sensors might use a different voltage standard. Modern sensors expect 12V DC, but some older units used 24V AC or even 6V DC. Mixing them up can cause damage. If you’re unsure, it’s worth a quick call to Atlanta Garage Doors located in Atlanta, GA. We’ve seen every combination out there, and we can tell you exactly what you’re dealing with over the phone most of the time.

A Note on Local Conditions

In Atlanta, humidity is a real factor. Moisture gets into wire connections, especially in garages that aren’t climate-controlled. Corrosion builds up on terminal screws and wire ends, increasing resistance and dropping voltage. That’s why I always recommend using dielectric grease on connections in this climate. It takes two seconds and prevents a lot of callbacks. If you’re in a drier area, you might never see that issue. But here, it’s almost guaranteed over time.

Table: Sensor Power Troubleshooting at a Glance

Symptom	Likely Cause	What to Check	DIY or Pro?
Both sensor LEDs off	No power from opener	Voltage at opener terminals	DIY if comfortable with multimeter
One LED off, one on	Wiring issue or bad sensor	Voltage at each sensor	DIY for wiring, replace sensor if needed
LEDs on but door won’t close	Misalignment or obstruction	Sensor alignment, clean lenses	DIY
Intermittent operation	Loose or corroded connection	All wire connections	DIY if accessible, pro if buried
New sensors don’t work	Wrong voltage or wiring mistake	Check specs, rewire correctly	Pro if unsure
Door works but sensors never trigger	Defective receiver sensor	Swap sender/receiver to test	DIY, replace receiver

The Bottom Line on Sensor Power

Garage door sensors get their power from the opener’s motor unit through low-voltage wiring. No batteries, no separate circuit. Most problems come from loose connections, bad wiring, or misalignment—not dead sensors. Understanding this saves you time, money, and the frustration of replacing parts that aren’t broken. If you’re comfortable with basic tools, you can handle most issues yourself. If the wiring is buried or the opener is old, calling a pro is the smarter move. Either way, now you know exactly where that power comes from and how to track it down.

June 1, 2026

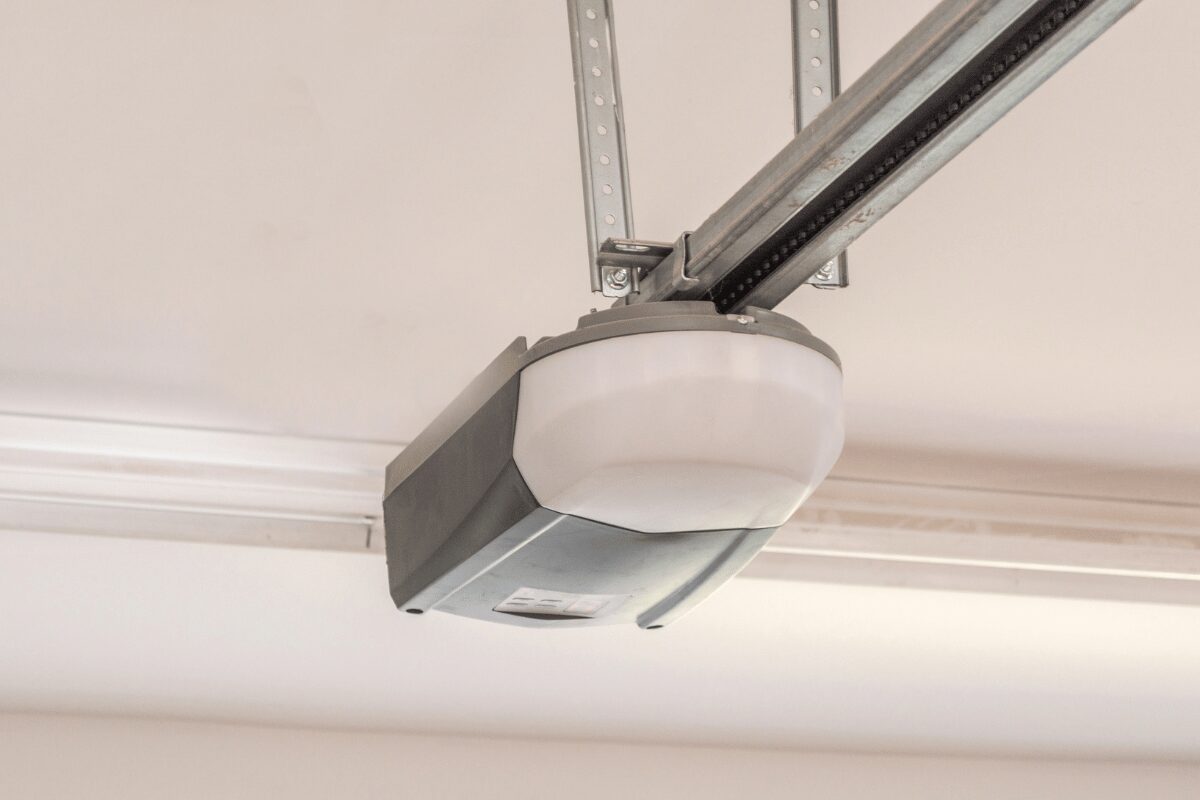

How To Close Garage Door Without Power

Most people don’t think about their garage door until the power goes out and they’re stuck. You pull into the driveway after a long day, hit the remote, and nothing happens. Or worse, you’re inside the garage trying to leave for work, and the door won’t budge. The motor is dead, the opener is useless, and suddenly a routine moment turns into a frustrating puzzle.

The good news is that closing (or opening) a garage door without power is almost always possible, and it doesn’t require special tools or a call to a technician. But doing it wrong can damage the door, injure you, or leave your home insecure. We’ve seen plenty of situations where a simple mistake turned a minor inconvenience into a costly repair.

Key Takeaways

Every garage door opener has a manual release mechanism, usually a red cord with a handle.
Releasing the door disengages it from the opener, allowing manual operation.
You must lock the door after closing it manually, since the opener won’t hold it shut.
Never force a door that feels stuck or unbalanced — that’s a sign of a broken spring or cable.
If you live in an area with frequent storms or power outages, knowing this process ahead of time saves real stress.

The Emergency Release: Your Only Friend in a Blackout

Inside every standard garage door opener is a carriage that connects the door to the motor’s drive chain or belt. That carriage is what pulls the door up and pushes it down. When the power cuts, the motor can’t move, so the carriage stays locked in place. The manual release is a small lever — usually attached to a red cord hanging from the opener rail — that disconnects the carriage from the trolley.

Pull that cord straight down, and you’ll hear a click. That click means the door is now free to move by hand. We always tell customers to test this when they first move into a home. It’s one of those “you’ll thank yourself later” moves. The cord can sometimes get tangled or stiff from years of disuse, so giving it a tug every few months keeps it from seizing up.

One thing people get wrong: they yank the cord sideways or at an angle. That can jam the mechanism or snap the cord. Pull straight down, firmly but gently. If it doesn’t release, don’t force it. Check for obstructions or call for help.

How to Close the Door Once It’s Released

Once the release is pulled, the door should move freely along its tracks. If you’re inside the garage and need to close it, simply guide the door downward using the handles or the bottom edge. Go slow. Garage doors are heavy, and if the springs are worn or broken, the door can drop like a stone. We’ve seen people lose grip and let the door slam, which can crack panels or bend tracks.

If the door feels unusually heavy or jerky when you try to close it, stop. That’s a strong indicator that one of the torsion springs has failed. In that case, closing it manually is risky — the door could fall suddenly or come off the tracks entirely. You’re better off calling a professional.

When you get the door fully closed, you’ll need to lock it manually. Most garage doors have a slide lock or a T-handle lock on the inside. Engage that lock. Without it, the door can be pushed open from the outside because the opener is no longer holding it in place. This is a step people forget all the time, and it’s how break-ins happen during outages.

What If the Door Is Stuck Partway Open?

This is where things get tricky. If the power goes out while the door is halfway up, you’re dealing with an unbalanced load. The door might be resting unevenly on the tracks or cables. Releasing the opener in that position can cause the door to shift suddenly.

We recommend propping the door with a sturdy object — like a ladder or a 2×4 — before pulling the release. Then, slowly lower the door while keeping your hands on the sides, not the bottom edge. The bottom edge can pinch fingers if the door slips. Use the side brackets or the handles if your door has them.

If the door is binding or scraping against the tracks, check for debris in the track channel. Leaves, pebbles, or even a bent track can stop the door cold. Clear what you can, but don’t try to bend a track back into place with a hammer. That usually makes things worse.

When You’re Outside and Need to Get In

This scenario is more common than you’d think. You come home, the power is out, and your car is in the driveway. The garage door won’t open, and the front door is locked. How do you get inside?

First, check if the garage has a side door. If it does, that’s your easiest path. If not, you’ll need to access the manual release from outside. Some garage doors have a keyed emergency release — a small lock on the outside of the door that connects to a cable. You insert a key, turn it, and pull the release from outside. Not all doors have this feature, especially older models.

If you don’t have an external release, you may need to lift the door slightly from the bottom to create enough gap to reach the release cord inside. This is easier with a two-person job: one person lifts the door an inch or two while the other reaches in to pull the cord. Be careful not to lift too high, or the door could spring up unexpectedly.

We’ve also seen people use a coat hanger or a long screwdriver to hook the release cord through the top seal. It’s not elegant, but it works in a pinch. Just be mindful of scratching the door or damaging the weatherstripping.

Common Mistakes That Lead to Bigger Repairs

Over the years, we’ve watched homeowners make the same errors again and again. Here are the ones that cost the most time and money:

Forcing the door after releasing it. If the door won’t move, something is wrong. Forcing it can snap cables or bend tracks.
Leaving the door unlocked after closing it manually. This is a security risk, plain and simple. Always engage the manual lock.
Pulling the release while the door is under tension. If the door is partially open and the springs are loaded, releasing it can cause the door to crash down. Always support the door first.
Re-engaging the opener without checking alignment. Once power returns, some people just hit the button. If the carriage isn’t aligned with the trolley, the opener can grind or damage itself. Walk the door up or down until you hear the carriage click back into place.

Should You DIY or Call a Pro?

For a simple power outage, DIY is perfectly fine. The manual release is designed for this. But there are clear lines where professional help is the smarter move.

Call a technician if:

The door is off its tracks.
You see broken cables or loose springs.
The door is uneven — one side higher than the other.
The door won’t move at all after releasing the opener.
You hear grinding, popping, or snapping sounds.

For residents of Atlanta, where older homes often have original garage doors from the 80s or 90s, these issues are especially common. The humidity and temperature swings in Georgia can cause wooden doors to warp and metal tracks to corrode over time. If your door hasn’t been serviced in a few years, an outage might reveal underlying problems that need professional attention. Garage door systems are more complex than most people realize, and a small issue can escalate quickly if mishandled.

We’ve also seen cases where a homeowner called us after trying to force a door closed, only to find that they had bent the track and cracked a panel. That repair cost several hundred dollars. A simple service call would have been far less.

Cost Considerations and Trade-Offs

If you’re considering upgrading your system to avoid future hassles, here’s a realistic breakdown of what you’re looking at:

Option	Approximate Cost	Pros	Cons
Manual release (no cost)	Free	Works with any opener; no tools needed	Requires physical effort; door not locked automatically
Battery backup opener	$200–$400	Opens and closes normally during outages	Adds weight to opener; battery lasts 2–3 years
Keyed emergency release	$30–$80	Allows outside access without lifting door	Requires installation; key can be lost
Smart garage controller with battery	$100–$250	Remote monitoring and control via phone	Relies on Wi-Fi; battery life varies
Full spring replacement	$200–$400	Restores smooth manual operation	Professional install recommended; dangerous DIY

The battery backup is the most popular upgrade we see, especially for families who rely on their garage as the main entry point. It doesn’t solve every problem — if the opener motor fails, the backup won’t help — but for power outages, it’s a solid fix.

When Manual Operation Isn’t the Answer

There are situations where you shouldn’t even try to close the door manually. If you suspect a spring break, stay away. Torsion springs are under extreme tension and can snap violently. We’ve seen them punch holes in drywall and injure people. If you hear a loud bang and then the door won’t move, that’s a spring failure. Call a pro.

Similarly, if the door is frozen to the ground — which happens in colder climates, though less often in Atlanta — don’t yank it. Pour warm water along the bottom seal to break the ice. Forcing a frozen door can tear the bottom seal or damage the panels.

And if you’re elderly, have limited mobility, or just don’t feel confident handling a heavy door, there’s no shame in calling for help. It’s better to spend a little on a service call than to end up with a crushed finger or a broken door.

Final Thoughts

Knowing how to close your garage door without power is one of those skills that feels useless until it’s absolutely necessary. It takes about 30 seconds to learn and can save you from being locked out or leaving your home vulnerable. Test your manual release now, while the power is on. Show your family how it works. And if the door doesn’t cooperate, address the issue before the next outage hits.

The goal isn’t to turn you into a garage door mechanic. It’s to keep you safe and your home secure when things go sideways. And if you’re in the Atlanta area and find yourself staring at a door that just won’t cooperate, Atlanta Garage Doors has seen it all and can get you sorted quickly.

May 27, 2026

How To Open LiftMaster Garage Door Manually From Outside
Most people don’t think about how to open their garage door manually until the power goes out, the remote dies, or the opener decides to quit on a Friday evening. We’ve seen it happen more times than we can count, especially during summer storms in Atlanta when the grid gets a little shaky. The panic is real, but the fix is usually straightforward. If you have a LiftMaster opener, you can get that door open from outside without any special tools or mechanical know-how. The trick is knowing where the release mechanism is and how to trigger it safely.

Key Takeaways:
- The manual release from outside relies on the emergency release cord and a simple tool, usually a coat hanger or similar wire.
- You must disconnect the opener before forcing the door up to avoid damaging the motor or the door itself.
- Weather, age of the hardware, and door balance all affect how easy or difficult this process is.
- If the door is under tension or the springs are broken, do not attempt to force it open—call a professional.
Understanding the Emergency Release System

LiftMaster openers use a red emergency release cord that hangs from the trolley mechanism on the rail. Under normal operation, this cord is pulled straight down to disconnect the door from the opener, allowing manual operation. The problem is that the cord is inside the garage. If you’re locked out, you need a way to reach it from the outside.

That’s where the manual release mechanism comes in. On most LiftMaster models, there’s a small access hole or slot on the back of the motor housing, near the top of the door. This is the external release point. It looks like a small keyhole or a simple circular cutout. You don’t need a special key—just a long, thin tool.

We’ve seen people try using screwdrivers, but the angle is usually wrong. A wire coat hanger works best because you can bend it into a hook and fish it through the slot to pull the release lever. Some newer models have a small metal tab inside that you push, but the hook method is the most reliable across generations.

The Step-by-Step Process (When You’re Stuck Outside)

First, make sure the door is fully closed. If it’s partially open, the springs are under tension and forcing the release could cause the door to slam down. That’s a safety issue and a potential injury risk. Once you confirm the door is down, here’s what to do.

Straighten a wire hanger and bend a small hook on one end. Slide it through the access hole on the motor housing. You’ll feel resistance when you hit the release lever. Hook it and pull firmly toward you. You should hear a distinct click or feel the trolley disengage. That’s the sound of the door separating from the opener chain or belt.

Now, lift the door manually from the bottom. If it feels heavy or unbalanced, stop. A properly balanced door should lift smoothly with moderate effort. If it’s sticking or feels like it’s carrying extra weight, the springs may be worn or broken. In that case, forcing it up can cause the door to come off the tracks or the springs to snap. We’ve seen that happen, and it’s not fun.

Once the door is open, prop it with a sturdy object or have someone hold it. Do not rely on the opener to hold it in place—it’s disconnected. You can now enter the garage, reconnect the opener by pulling the red cord toward the door (it clicks back into place), and troubleshoot the electrical issue.

Common Mistakes That Make This Harder Than It Should Be

The biggest mistake we see is people trying to force the door open without disconnecting the opener first. The motor is still engaged, so you’re essentially trying to lift a car with the parking brake on. That can strip gears, burn out the motor, or snap the belt. It’s a costly repair that could have been avoided.

Another frequent error is using the wrong tool. A screwdriver or key will not reach the release lever on most models. The angle is too steep, and the leverage is wrong. A wire hanger is flexible enough to bend into the right shape. If you don’t have one, a long zip tie or a piece of stiff wire from a hardware store works. But honestly, we’ve used a bent coat hanger more times than we can count, and it’s never failed.

People also forget to check the door’s balance before lifting. If the door is heavy, it’s a sign of a spring issue. Lifting it anyway can cause the cables to snap or the door to come off the tracks. That’s a situation where you want to call a professional. Garage door systems are under significant tension, and mishandling them can lead to injury.

When This Method Doesn’t Work

Not every LiftMaster model has an external release. Some older units or certain low-profile models don’t include the access hole. If you look at the back of the motor and there’s no obvious slot, you’re probably out of luck with this method. In that case, you’ll need to find another way in—like a side door or a window—or call a locksmith.

Another scenario where this fails is if the door is frozen shut. In Atlanta, we don’t deal with extreme cold often, but it happens. Ice can seal the bottom seal to the concrete. In that case, even if you release the opener, the door won’t budge. You’ll need to break the ice seal first, then lift.

If the door is off its tracks or the springs are visibly broken, do not attempt to open it manually. The door is unstable and could fall. Call a professional immediately. We’ve seen homeowners try to muscle a door open only to have it crash down, damaging the door, the opener, or worse, someone’s foot.

The Role of Door Balance and Spring Health

This is something most homeowners don’t think about until it’s a problem. A well-maintained door should lift easily by hand when the opener is disengaged. If it’s hard to lift, the springs are likely worn. Springs have a lifespan of about 10,000 cycles, which for a typical family home is around 7 to 10 years. After that, they lose tension.

We recommend testing your door’s balance every six months. Disconnect the opener, lift the door halfway, and let go. It should stay in place. If it falls, the springs are weak. If it rises, they’re too tight. Both situations need adjustment by a professional. Ignoring it leads to premature wear on the opener and the door itself.

In older Atlanta neighborhoods like Virginia-Highland or Decatur, many homes have original doors from the 1990s. Those springs are long past their prime. If you’re in one of those areas and haven’t replaced your springs, this is a good reminder to schedule a checkup.

Tools You Might Not Have Thought Of

A coat hanger is the standard tool, but it’s not the only one. A long, thin screwdriver with a bent tip can work. Some people use a piece of stiff wire from a hardware store. If you’re really in a pinch, a heavy-duty zip tie can be bent into a hook, though it’s less durable.

We’ve also seen people use a long, thin piece of wood, like a paint stirrer, but it’s too flexible to apply the right force. Stick with metal. The key is to have something that can reach about 6 to 8 inches into the access hole and hook the lever.

If you’re a homeowner in Atlanta, keep a straightened coat hanger in your car’s glove compartment or in the garage near the opener. It’s a cheap insurance policy. You’ll thank yourself the next time the power goes out during a thunderstorm.

When to Call a Professional Instead of DIY

There’s a fine line between a quick fix and a dangerous situation. If the door is heavy, sticking, or making unusual noises, stop. Call a professional. We’ve seen too many people try to save a few dollars and end up with a broken door or a trip to the ER.

Also, if you’re not comfortable working with tools or don’t have a steady hand, it’s okay to call for help. The emergency release is simple, but it requires patience and a bit of finesse. Forcing it can damage the mechanism.

If you’re in Atlanta and dealing with a stubborn door, Atlanta Garage Doors can help. We handle these situations daily. Whether it’s a simple release or a full spring replacement, we’ve got the tools and experience to get your door working safely.

Trade-Offs: Manual vs. Automatic Operation

Once you’ve manually opened the door, you’ll have to decide whether to leave it disconnected or reconnect it. If the power is out, you can leave it disconnected and operate the door manually until power returns. That’s fine for a short period, but it’s not ideal for daily use. Manual operation is harder on the door and can wear out the rollers and tracks faster.

If the opener is broken, you might consider replacing it. Newer LiftMaster models have battery backups that keep the door working during power outages. That’s a worthwhile upgrade if you experience frequent outages. But if the opener is just dead, a simple repair might be all you need.

We’ve also seen people opt for a keyed external release, which is a small lock you can install on the door. That gives you a dedicated way to disconnect the opener from outside. It’s a good solution if you don’t want to rely on a coat hanger.

Final Thoughts

Knowing how to open your LiftMaster garage door manually from outside is one of those skills you don’t need until you really need it. It’s simple, requires no special tools, and can save you from being locked out of your own home. But it’s not a cure-all. Door balance, spring health, and weather all play a role. If something feels off, trust your instincts and call a pro.

In Atlanta, we deal with humidity, storms, and aging infrastructure. A little preparation goes a long way. Keep a coat hanger handy, test your door’s balance twice a year, and don’t hesitate to ask for help when you need it. Your garage door should be a convenience, not a headache.
May 26, 2026
What Are Common Sensor Alignment Problems?
What Are Common Sensor Alignment Problems?

Let’s cut straight to it: your garage door won’t close, the lights keep flashing, and you’re standing there pressing the remote like it’s going to magically fix itself. We’ve all been there. The culprit is almost always sensor alignment. Those two little eyes mounted on each side of the track near the floor? They’re not just there for decoration. They’re safety devices that prevent the door from crushing anything—or anyone—in its path. When they lose alignment, your door refuses to close. Period.

The key takeaway is that most sensor alignment problems are simple to diagnose and often fixable with basic tools. But there are nuances. We’ve walked into hundreds of homes where the homeowner spent hours fiddling with sensors only to discover the real issue was something else entirely. So let’s break down what actually goes wrong, what you can handle yourself, and when it’s time to call a pro.

Why Sensors Matter More Than You Think

The safety sensors on modern garage doors—officially called photoelectric sensors—were mandated by federal law in 1993 under UL 325 standards. Before that, garage doors killed and injured people every year, mostly children. The sensors work by shooting an invisible infrared beam across the door opening. If anything breaks that beam while the door is closing, the door reverses direction. It’s a simple, elegant safety mechanism.

But here’s the thing: these sensors are finicky. They’re mounted low to the ground, exposed to dust, dirt, sunlight, and the occasional bump from a broom or a kid’s bike. They’re also sensitive enough that a misalignment of just a quarter-inch can cause the door to refuse to close. That’s not a design flaw—it’s intentional. The system is designed to fail safe, meaning it stops working rather than risking injury.

We’ve seen homeowners in older neighborhoods around Atlanta—places like Virginia-Highland or Inman Park—deal with sensor issues that stem from decades of foundation settling. The tracks shift, the brackets loosen, and suddenly the sensors are pointing at each other but missing the beam by a hair. It’s frustrating, but it’s also predictable.

The Most Common Sensor Alignment Problems

Physical Obstruction

This is the number one cause. Something is blocking the beam. It could be a cobweb, a leaf, a pile of dirt, or even a storage box you shoved against the wall. The sensors are mounted about six inches off the floor, so anything at that height can interfere. We’ve seen cases where a homeowner swore the sensors were aligned, but a single spider web was enough to scatter the beam.

The fix is simple: wipe both sensor lenses clean with a soft cloth. Use a little glass cleaner if they’re grimy. Then check that nothing is sitting between them. It’s the first thing we check on every service call, and it fixes about 40% of alignment issues on the spot.

Sunlight Interference

This one surprises people. Direct sunlight hitting one sensor can overwhelm the infrared beam, making the system think the beam is broken. This usually happens in the late afternoon when the sun is low and shining directly into one of the sensor eyes. If your door only acts up at certain times of day, sunlight is the likely culprit.

The solution is to shade the sensor. You can buy little sunshades that clip onto the sensor housing, or you can get creative with a piece of cardboard taped above it. We’ve also seen people plant a shrub or install a small awning to block the sun. It’s a workaround, but it works.

Loose or Misaligned Brackets

The sensors are mounted on small brackets that attach to the track. Over time, vibration from the door opening and closing can loosen the screws holding those brackets. When the brackets shift, the sensors point in slightly different directions. The beam might still be close, but not close enough.

This is where a simple alignment check comes in. Look at both sensors. They should face each other directly. If one is tilted up, down, or sideways, loosen the bracket screw, adjust the sensor so it’s level and pointing straight at the other sensor, then tighten the screw. It’s a two-minute fix once you know what to look for.

Wiring and Power Issues

Sometimes the sensors are physically aligned but the door still won’t close. That’s when you need to check the wiring. The sensors are connected to the garage door opener with low-voltage wires. If those wires are damaged, corroded, or chewed by a rodent, the signal won’t get through. We’ve pulled open sensor housings to find wire nuts that had come loose or wires that were barely hanging on.

A quick test: look at the LED lights on each sensor. One sensor usually has a steady green light, and the other has a steady amber or red light. If either light is off or flickering, there’s a power or wiring problem. You can check the wire connections at the sensor and at the opener unit. If the wires look fine but the light is still off, the sensor itself may be dead.

Track or Door Misalignment

This is the one that tricks people. The sensors are aligned perfectly, but the door still won’t close. The issue might be that the track itself is bent or out of alignment. If the track is twisted, the sensor bracket moves with it, and no amount of sensor adjustment will fix it.

We ran into this recently at a house near Piedmont Park. The homeowner had replaced the sensors twice, thinking they were defective. Turned out the track had taken a hit from a car backing into it. The track was bowed inward by about half an inch. Once we straightened the track, the sensors aligned naturally, and the door worked fine. Sometimes the problem isn’t the sensor—it’s the thing the sensor is mounted to.

When It’s Not the Sensors at All

Here’s where experience matters. We’ve had customers call us in a panic because their door won’t close, and they’ve already spent hours adjusting sensors. But the real problem was something else entirely. The logic board on the opener can fail. The limit switches that tell the door when to stop can drift out of adjustment. The safety reverse mechanism can malfunction. And sometimes, the remote battery is just dead.

A good rule of thumb: if both sensor LEDs are steady and bright, the sensors are probably fine. The problem is elsewhere. Don’t keep chasing a sensor issue that doesn’t exist. We’ve seen people replace sensors three times only to find out the opener needed a new circuit board.

How to Diagnose Sensor Alignment Like a Pro

You don’t need special tools for most sensor alignment issues. Here’s what we do on every call:
1. Check the LEDs – Both sensors should have steady lights. If one is off, check power and wiring. If one is flashing, there’s an alignment or obstruction issue.
2. Clean the lenses – Wipe both sensors with a soft cloth. It’s amazing how often this fixes it.
3. Check for obstructions – Look between the sensors at floor level. Move anything that could block the beam.
4. Verify alignment – Look at the sensors from above. They should be pointing directly at each other. Use a level if you want to be precise, but eyeballing it usually works.
5. Test the door – Press the wall button or remote. If the door closes, you’re done. If not, move to the next step.
6. Check the track – Look for bends, dents, or gaps between the track and the wall. If the track is damaged, you’ll need to fix that first.
7. Bypass the sensors (temporarily) – If you’re comfortable with wiring, you can disconnect the sensors and jump the wires at the opener to see if the door closes. If it does, the sensors are the problem. If it doesn’t, the opener has a different issue.
When to Call a Professional

We’re not going to tell you that every problem requires a service call. Most sensor alignment issues are DIY-friendly. But there are times when it makes sense to bring in someone who does this every day.

If you’ve cleaned the lenses, checked the alignment, and confirmed the wiring is intact, but the door still won’t close, you’re dealing with something beyond basic sensor issues. It could be a faulty logic board, a broken sensor, or a track problem that requires specialized tools. At that point, the cost of a service call is less than the cost of replacing parts you don’t need.

We’ve also seen homeowners in Atlanta’s older neighborhoods—places like Grant Park or Ansley Park—deal with sensor problems that trace back to outdated wiring or non-standard mounting brackets. Older homes sometimes have garage door systems that were installed before the safety sensor mandate, and retrofitting them can be tricky. If your sensors look like they were added as an afterthought, it’s worth having a professional evaluate the setup.

Common Mistakes Homeowners Make

We’ve seen the same mistakes over and over. Here are the big ones:

Tightening screws too much. The sensor brackets are plastic. Overtightening can crack the bracket or strip the threads. Snug is enough.

Ignoring the track. As we mentioned, if the track is bent, no amount of sensor adjustment will fix it. Check the track first.

Using the wrong tools. You don’t need a laser level to align garage door sensors. A standard bubble level or even a careful look with your eyes is sufficient.

Assuming both sensors are the same. Some sensors have a transmitter and a receiver. They look identical, but they’re not interchangeable. If you replace one, make sure you get the right type.

Forgetting to test the safety reverse. After you fix the alignment, test the door’s safety reverse by placing a roll of paper towels under the door and closing it. The door should reverse when it hits the object. If it doesn’t, the sensors are still not working correctly, or the opener’s force settings need adjustment.

Cost Considerations

Sensor alignment is usually free if you do it yourself. Replacement sensors cost between $10 and $30 each. A professional service call in Atlanta typically runs $75 to $150, depending on the company and the time of day. If the problem is more complex—like a damaged track or a failed logic board—costs can go higher. But for simple alignment issues, it’s hard to justify a service call unless you’re short on time or patience.

We’ve had customers tell us they spent $200 on sensors and tools trying to fix an alignment issue themselves, only to call us and have us fix it in ten minutes for $100. Sometimes the DIY route saves money. Sometimes it doesn’t. It depends on your comfort level and how much time you want to spend.

Alternatives to Consider

If your sensors are old and finicky, you might consider upgrading to a newer system. Modern garage door openers often have built-in diagnostics that tell you exactly what’s wrong. Some even have smartphone apps that show you sensor status. If you’re planning to stay in your home for a while, a new opener with better sensor technology might be worth the investment.

There are also aftermarket sensor kits that are more resistant to sunlight and vibration. They’re not cheap, but they can solve chronic alignment problems. We’ve installed them in homes where the sensor location gets direct afternoon sun, and they’ve worked well.

That said, if your current system is working fine except for occasional alignment issues, there’s no reason to replace it. A little maintenance goes a long way.

Real-World Observations

One thing we’ve learned over the years: garage door sensors are a lot like smoke detectors. They’re annoying when they act up, but you’d never want to live without them. The safety standard they enforce has saved countless lives. Every time we see a homeowner frustrated by a sensor issue, we remind them that the inconvenience is a small price to pay for safety.

That doesn’t make it any less frustrating when you’re standing in the driveway with a door that won’t close. But it does put things in perspective.

If you’re in the Atlanta area and dealing with a stubborn garage door, garage door safety systems have come a long way, but they still need occasional attention. Whether you tackle it yourself or call a pro, the goal is the same: a door that closes reliably and safely.

Final Thoughts

Sensor alignment problems are common, but they’re rarely catastrophic. Most of the time, the fix is simple and cheap. The key is knowing what to look for and when to stop guessing.

If you’ve checked everything we’ve covered and the door still won’t close, don’t keep throwing parts at it. Call a professional. Sometimes the smartest move is knowing when you’re out of your depth. And that’s not a failure—it’s experience.

Atlanta Garage Doors, located in Atlanta, GA, sees these issues every week. Whether it’s a loose bracket, a sun-blinded sensor, or a track that’s taken one too many hits, we’ve handled it. If you’re stuck, we’re here. But hopefully, this guide saves you the call and gets your door closing again tonight.
May 24, 2026

How To Reset Chamberlain MyQ Garage Door Keypad?

You’ve got the code right, you’ve punched it in a dozen times before, but this morning the keypad just blinks back at you like it’s never seen you before. The garage door doesn’t budge. Frustration sets in fast, especially when you’re already running late. We’ve been there more times than we can count, both on our own jobs and when customers call us in a panic.

The good news? Resetting a Chamberlain MyQ keypad is usually a two-minute job. The bad news? Most people overthink it or miss one small step, then assume the unit is broken. Let’s cut through the noise.

Key Takeaways

Most Chamberlain MyQ keypad resets require a simple sequence of button presses, not a factory reset.
The most common cause of failure is a dead battery or a keypad that has lost its signal to the opener.
If the keypad still won’t work after a reset, the issue is often a logic board problem inside the opener, not the keypad itself.
You can test the keypad’s radio signal by holding it right next to the opener before calling for a replacement.

The Reset Sequence That Works 9 Times Out of 10

We’ve seen homeowners dig through manual PDFs for twenty minutes when the fix is literally three steps. Here’s the sequence we use on every service call where a customer says “my keypad stopped working.”

Press and hold the “Learn” button on the back of the keypad for about 10 seconds. You’ll see the LED flash rapidly, then go solid.
Enter your existing 4-digit PIN on the keypad.
Press and hold the “Enter” button until the garage door starts moving.

That’s it. The door should either open or close depending on its current position. If it doesn’t move, you’ve either got a dead battery or the keypad has lost its pairing with the opener. We’ll get to pairing next.

Why This Works Better Than a Factory Reset

Most people jump straight to a factory reset because they think the keypad is “broken.” But what actually happens is the keypad’s internal memory gets a little scrambled—maybe from a power surge, a low battery, or just age. That simple press-and-hold clears the temporary glitch without wiping your PIN. It’s like rebooting a router instead of factory resetting it.

We’ve done this on keypads that were supposedly “dead” and had them working perfectly for years afterward. It’s worth trying before you spend money on a replacement.

When You Need to Re-Pair the Keypad

Sometimes the reset doesn’t work because the keypad has completely lost its wireless connection to the opener. This happens more often in Atlanta’s summer heat, when temperature swings can affect the electronics. It also happens after a power outage or if someone accidentally hit the “Learn” button on the opener itself.

Here’s the re-pairing process we use. It’s the same for nearly all Chamberlain, LiftMaster, and Craftsman openers with MyQ.

Step-by-Step Re-Pairing

Locate the “Learn” button on the garage door opener motor unit. It’s usually behind the light lens cover, colored purple, yellow, or red. Press and release it. You’ll see a red LED start blinking.
Go to the keypad. Within 30 seconds, enter your desired 4-digit PIN.
Press and hold the “Enter” button. The opener’s light bulb should flash or click, confirming the pairing.

That’s it. The keypad is now linked to the opener. Test it by entering your PIN and pressing Enter. The door should move.

A Common Mistake We See All the Time

People press the “Learn” button on the opener and then walk away. They don’t realize the opener only stays in “learning mode” for 30 seconds. By the time they get to the keypad and figure out what PIN to use, the window has closed. Then they blame the keypad.

We always tell customers: press the Learn button after you’ve already decided on your PIN. Stand at the keypad, PIN ready in your head, then have a helper press the Learn button. Or, if you’re alone, press the Learn button, walk quickly to the keypad, and enter the PIN immediately. Don’t overthink it.

The Battery Problem Everyone Ignores

Here’s something we’ve learned the hard way: a Chamberlain MyQ keypad will behave erratically long before the battery is completely dead. It might blink but not respond. It might accept your PIN one day and reject it the next. It might work from two feet away but not from the driveway.

The battery is a standard 9-volt. We carry spares in our truck because we replace them on almost every maintenance call.

How to Test Without a Multimeter

If you don’t have a voltage tester, just hold the keypad up to your ear while pressing a button. If you hear a faint click, the battery has enough juice to make the relay move but not enough to transmit a signal. Replace the battery. If you hear nothing, the battery is dead.

We’ve also seen people put the battery in backwards. The terminals are labeled, but in the dark or under stress, it happens. Double-check the polarity before you assume the unit is broken.

When the Keypad Still Won’t Work

You’ve replaced the battery. You’ve re-paired the keypad. You’ve done the reset sequence. The door still doesn’t move. Now what?

This is where we see people waste money. They buy a new keypad, install it, and the same problem happens. The issue isn’t the keypad. It’s the logic board inside the garage door opener.

Testing the Opener’s Receiver

Every garage door opener has a radio receiver built into the logic board. Over time, especially in older homes in areas like Virginia-Highland or Decatur, the receiver can degrade. Power surges, lightning strikes, and even age can kill the receiver while the motor still works fine.

Here’s a quick test: take the keypad and hold it directly next to the opener’s motor unit, about an inch away from the antenna wire. Press your PIN and Enter. If the door moves, the receiver is working but the range is poor. If it doesn’t move, the receiver is likely dead.

A dead receiver means you need a new logic board, which can cost as much as a new opener. At that point, it’s often smarter to replace the whole unit. We’ve had customers spend $150 on a logic board only to have the motor die six months later.

Keypad Models and Compatibility

Not all Chamberlain keypads are the same. The most common model we see is the 940EV-P2, which works with nearly all MyQ openers made after 2006. But there are older models, like the 940D or the 950ESTD, that use different frequencies.

If you have an older keypad and a newer opener, they might not talk to each other. You can check compatibility by looking at the back of the keypad for a frequency rating. Most modern openers use 315 MHz or 390 MHz. If your keypad uses a different frequency, no amount of resetting will make it work.

We keep a chart in our van, but honestly, the easiest way is to check Chamberlain’s compatibility tool on their website. It saves a lot of frustration.

When DIY Makes Sense and When It Doesn’t

We’re all for saving money. If your keypad just needs a new battery or a quick re-pair, that’s a five-minute job you can handle yourself. But we’ve also seen people spend an entire Saturday afternoon fighting with a keypad that has a dead receiver, only to call us on Sunday and pay a weekend service fee.

Here’s a rough guide we share with customers:

Situation	DIY or Pro?	Why
Keypad won’t respond, battery is old	DIY	Replace the 9V battery first.
Keypad works intermittently	DIY	Re-pair the keypad to the opener.
Keypad works only when held near opener	Pro	Receiver or antenna issue. Likely needs a pro.
Keypad blinks but door doesn’t move	Pro	Could be logic board or motor failure.
Keypad is physically damaged (cracked, water inside)	Pro	Replace the keypad, but check receiver too.
Door moves from wall button but not keypad	Pro	Receiver or wiring issue. Not a keypad problem.

We’ve seen people try to fix a receiver issue by buying three different keypads. That’s $150 in parts they didn’t need. A service call from a company like Atlanta Garage Doors costs less than that, and we’ll diagnose it in ten minutes.

The Role of MyQ and Smart Features

Chamberlain’s MyQ system is great when it works. It lets you open and close your door from your phone, set schedules, and get alerts. But it also adds complexity. We’ve seen keypads that work perfectly with the wall button but won’t sync with the MyQ app.

If your keypad works manually but not through the app, the problem is almost always the Wi-Fi connection, not the keypad. MyQ openers need a strong 2.4 GHz signal. If your router is on the other side of the house or behind a brick wall, the signal might not reach.

We’ve installed Wi-Fi extenders in garages for customers in Morningside and Ansley Park because those older homes have thick brick construction that kills wireless signals. It’s a simple fix, but people don’t think of it.

A Note on Local Climate

Atlanta’s humidity and temperature swings are hard on outdoor electronics. We’ve replaced more keypads in August than in any other month. The heat can warp plastic housings, and moisture can seep into the battery compartment and corrode the contacts.

If your keypad is exposed to direct sunlight or rain, consider installing a small weather shield. You can buy one for under $20, or we can install one during a routine visit. It’s cheap insurance.

We also see a lot of keypad failures after thunderstorms. Lightning doesn’t have to hit your house directly. A nearby strike can induce a voltage spike in your home’s wiring that fries the logic board’s receiver. If your keypad died after a storm, the receiver is likely toast.

The Bottom Line

Resetting a Chamberlain MyQ keypad is almost always straightforward. Start with the battery. Then try the quick reset sequence. If that fails, re-pair the keypad to the opener. If none of that works, the problem is probably inside the opener itself, not the keypad.

Don’t throw money at a new keypad until you’ve confirmed the receiver is working. And if you’re in the Atlanta area and you’ve tried everything, give us a call. We’ve seen every variation of this problem, and we can usually have you back up and running in under an hour.

Sometimes the fix is a $5 battery. Sometimes it’s a new opener. Either way, it’s better to know what you’re dealing with than to guess.

May 23, 2026

How To Program Garage Door Opener To Car Chevy

Most people assume programming a garage door opener to their Chevy is going to be a headache. They picture digging through a glove box stuffed with receipts, hunting for a manual that probably got thrown out during the last move. Or worse, they think it requires a trip to the dealership and a bill that makes no sense for something that should be simple. The reality is, for most Chevy models made in the last fifteen years, the process takes under two minutes. But there are a few quirks that trip people up constantly, and if you hit those snags without knowing what to look for, you’ll end up frustrated and convinced the car is broken.

Key Takeaways

Most Chevy vehicles use a built-in Homelink system that learns from your existing remote.
The most common failure point is not clearing the garage door opener’s memory first.
If your car has a learn button on the opener motor, you’ll need to press it during the pairing process.
Older Chevy models or base trims may require a separate visor transmitter or aftermarket adapter.
If the process fails repeatedly, the issue is almost always a compatibility problem with rolling code technology, not a broken car.

The Short Version for Impatient Owners

If you just want to get this done and move on, here is the condensed workflow. Sit in your Chevy with the ignition on or in accessory mode. Hold down the two outer buttons on your rearview mirror or overhead console until the light starts flashing rapidly. That clears the system. Grab your existing garage door remote and hold it an inch or two from the mirror. Press and hold both the car button you want to program and the remote button simultaneously. Hold until the car’s indicator light changes from slow flash to solid or rapid flash. If it’s a newer opener with rolling codes, get out, find the “learn” button on the motor unit, press it, then get back in and press your programmed car button twice. That’s it.

But if it doesn’t work, you’re not alone. About one in four attempts fails on the first try, and it’s usually because of a step people skip or misunderstand.

Understanding What’s Actually Happening Under the Hood

The Homelink system in your Chevy is essentially a universal remote that clones the signal from your existing garage door opener. It doesn’t communicate directly with the door motor in some proprietary GM language. It just learns the radio frequency and code your remote uses. This is important because it means the car is only as smart as the remote you give it. If your remote is old, dying, or uses a frequency your Chevy doesn’t support, the programming will fail.

Most modern garage door openers operate on frequencies between 300 and 400 MHz. Chevy’s Homelink system covers that range, but there are edge cases. Some very old openers from the 1980s or early 1990s use dip switches and fixed codes. Those actually pair easier because there’s no security protocol to negotiate. The tricky ones are openers made after 1996 that use rolling code technology. That’s where most people get stuck.

Rolling code means the remote and the motor share a constantly changing encryption key. Every time you press the button, the code shifts. Your car has to learn not just the current code, but the algorithm that generates the next one. That extra step is why you have to press the learn button on the motor unit. Without it, the car sends an outdated code and the door ignores it.

The Biggest Mistake People Make

We see this all the time. Someone buys a new Tahoe or Silverado, pulls into the driveway, and spends twenty minutes pressing buttons while nothing happens. They blame the car. They blame the opener. They call the dealer. Nine times out of ten, the problem is that they didn’t clear the Homelink memory first.

If your Chevy was previously owned, or if you test drove a model that had a programmed opener, the system still holds that old data. Trying to overwrite it without clearing creates a conflict. The car gets confused about which signal to learn. The fix is simple: press and hold the two outer buttons on the mirror until the indicator light flashes rapidly. That usually takes about twenty seconds. Then release and proceed with programming. It sounds too basic to be the culprit, but it’s the number one reason programming fails.

Another common mistake is holding the remote too far away. The Homelink receiver in the mirror is small and not particularly powerful. It needs the remote within an inch or two. Holding it on the passenger seat or against the windshield often doesn’t work. Press it directly against the mirror if you have to.

When the Learn Button Doesn’t Cooperate

Some garage door openers, especially older models from Chamberlain, LiftMaster, or Sears, have a learn button that is tiny and recessed. You might need a paperclip or a pen tip to press it. And the window to complete the pairing is short, usually about thirty seconds. If you press the learn button, then walk back to the car slowly, you might miss the window. Have your car door open, sit down, and press the button on the motor first, then immediately press your programmed Homelink button twice. The door should respond.

If it doesn’t, try again. Sometimes the motor unit doesn’t register the first press. We’ve seen units where the learn button is worn out from years of use. In that case, you might need to replace the opener’s logic board or consider an external receiver that bridges the gap between your Chevy and the old motor.

Compatibility Issues You Should Know About

Not every Chevy has Homelink. It’s typically standard on LT trims and above, but base models like the Work Truck package often omit it. If your rearview mirror has no buttons, or if the overhead console is blank, you don’t have the system. Some owners don’t realize this until they’ve already started the process.

For those without Homelink, the solution is a universal visor transmitter. They cost around thirty bucks and clip onto the sun visor. Programming them is identical to programming a regular remote. You can also buy an aftermarket Homelink mirror that replaces your stock one, but that involves wiring and usually isn’t worth the hassle unless you really want the integrated look.

Another compatibility issue involves frequency. Some older openers, particularly those made by Genie before 2005, use a frequency around 390 MHz that falls outside the range of certain Homelink versions. If you have an older Chevy and an older opener, you might need a frequency adapter. These are small boxes that sit between your opener and the power source and translate the signal. They’re not expensive, but most people don’t know they exist.

Rolling Code vs. Fixed Code: A Quick Breakdown

If you’re dealing with a newer garage door opener, you’re almost certainly dealing with rolling code. Here’s how to tell. Press and hold your remote button. If the light on the motor unit blinks once and then stays solid, it’s likely fixed code. If the light blinks multiple times or flashes rapidly, it’s rolling code.

For fixed code openers, the process is straightforward. Clear the Homelink memory, hold the remote near the mirror, press both buttons, and you’re done. For rolling code, you need that extra step of pressing the learn button. If you skip it, the car will appear to program successfully, but the door won’t move when you test it.

We’ve had customers swear they followed every step and still couldn’t get it to work. In almost every case, they either didn’t hold the remote close enough or didn’t press the learn button within the time limit. It’s frustrating, but it’s fixable.

When to Call a Professional Instead of DIY

There are situations where no amount of button pressing will solve the problem. If your garage door opener is more than twenty years old, the logic board may be failing. The learn button might be non-functional, or the receiver might be too weak to pick up the Homelink signal. In those cases, you’re better off replacing the opener entirely. It’s not worth spending hours troubleshooting a unit that’s already on its last legs.

Also, if you’ve tried the process multiple times and the car’s indicator light never changes from slow flashing to solid, there may be a hardware issue with the Homelink module itself. That’s rare, but it happens. A dealership can diagnose it, but expect to pay for the labor.

For homeowners in Atlanta, GA, we see a lot of older homes with openers that were installed in the 1990s and never replaced. The heat and humidity here take a toll on electronics. If you’re in an older neighborhood like Druid Hills or Ansley Park, your opener might be original to the house. Before you blame your Chevy, check the age of the motor unit. If it’s pre-2000, just replace it. Modern openers are quieter, safer, and far more compatible with vehicle systems.

What About Aftermarket Adapters and Workarounds

If your Chevy doesn’t have Homelink and you don’t want to use a visor clip, there are aftermarket solutions. Some companies make adapters that plug into your OBD-II port and connect to your phone via Bluetooth. Those can work, but they’re clunky and require an app every time you want to open the door. Not ideal.

Another option is a smart garage door controller like a MyQ or a Nexx unit. These connect to your home Wi-Fi and let you control the door from your phone. Some even integrate with Apple CarPlay or Android Auto. The downside is that they rely on your home internet and phone battery. If the power goes out or your phone dies, you’re stuck.

For most people, the simplest solution is still the built-in Homelink or a basic universal remote. The aftermarket stuff adds complexity without much benefit.

A Practical Comparison of Your Options

Here’s a straightforward look at the trade-offs between the main approaches for programming your Chevy to open your garage door.

Method	Cost	Difficulty	Reliability	Best For
Homelink (built-in)	Free (if equipped)	Low	Very high	Most Chevy owners with LT trims and above
Universal visor transmitter	$20–$40	Low	High	Base models without Homelink
Aftermarket Homelink mirror	$100–$250	Medium	High	People who want factory integration
Smart garage controller	$30–$80	Medium	Moderate	Tech-savvy users who want phone control
Opener replacement	$150–$400	High (DIY)	Very high	Homes with openers older than 15 years

The table above reflects what we’ve seen in the field. Homelink is the best option when it’s available. If it’s not, a visor transmitter is the next best thing. Smart controllers are fine, but they introduce failure points that don’t exist with direct radio frequency pairing.

What to Do If Nothing Works

If you’ve cleared the memory, held the remote against the mirror, pressed the learn button, and still have no luck, try a different remote. Maybe your remote’s battery is weak. Maybe the button is worn out. Grab the spare remote that came with the opener and try again.

If that fails, test the remote itself by walking up to the motor unit and pressing the button. If the door doesn’t move, the remote is dead. If it does move, the issue is with the car’s Homelink system. At that point, you have two choices: live with a visor remote or replace the mirror module.

We’ve also seen cases where the car’s battery was low. Homelink draws minimal power, but if your Chevy’s battery is weak, the system might not initialize properly. Jump starting or replacing the battery has fixed the issue for a few customers.

The Role of Local Climate and Conditions

Living in Atlanta, GA, means dealing with humidity that can corrode contacts inside both the remote and the motor unit. If you’re having intermittent issues, corrosion might be the culprit. Open the remote and check the battery terminals. If you see white or green residue, clean it with a cotton swab and rubbing alcohol. Do the same for the learn button on the motor unit if it’s accessible.

Also, extreme heat can affect the plastic housing of the motor unit, causing the learn button to stick or become unresponsive. If your opener is mounted in an unconditioned garage, the temperature swings can shorten its lifespan. We’ve replaced dozens of units in the metro area for exactly this reason.

Final Thoughts

Programming your Chevy to open your garage door isn’t complicated, but it requires patience and an understanding of how the two systems talk to each other. Most failures come down to skipping the memory clear step, not pressing the learn button, or using a remote that’s too far away. If you follow the process methodically, it should work the first time.

If it doesn’t, don’t assume your car is broken. Check the age of your opener, test your remote, and consider whether it’s time for an upgrade. Sometimes the simplest fix is replacing a twenty-year-old motor unit with something modern. And if you’re in the Atlanta area and find yourself stuck, Atlanta Garage Doors can help sort out the hardware side of things. We’ve seen every variation of this problem, and ninety percent of the time, it’s a small fix that takes minutes.

The goal here isn’t to sell you something you don’t need. It’s to save you the frustration of standing in your driveway pressing buttons while your neighbors watch. Get the clear, get the learn button, and you’ll be pulling in without touching the remote in no time.

May 22, 2026

How To Connect Garage Door Opener To Remote

Most people assume pairing a garage door remote is as simple as pressing a button and moving on. And sometimes, it is. But if you’ve ever stood in your driveway at 11 PM, clicking a remote that refuses to cooperate, you know the frustration runs deeper. We’ve seen this play out hundreds of times in Atlanta—new homeowners, rental tenants, even folks who just bought a universal remote from a big-box store and expected it to work out of the box. It rarely does without a few hiccups.

The truth is, connecting a garage door opener to a remote isn’t hard once you understand what’s actually happening under the hood. But there are a few common mistakes that turn a five-minute job into a headache. Let’s walk through it the way we’ve learned over the years—by doing it, failing at it, and figuring out the shortcuts that actually work.

Key Takeaways

Most modern openers use either dip switches, rolling code technology, or smart learning buttons. Knowing which one you have saves time.
The most common failure point is not clearing the opener’s memory before pairing a new remote.
Universal remotes work with most brands, but you must verify compatibility with your opener’s frequency (usually 315MHz or 390MHz).
If your remote works intermittently, the issue is often signal interference or a dying battery—not a broken opener.
When all else fails, a professional garage door repair technician can diagnose hidden issues like a faulty logic board or damaged antenna.

The Three Types of Openers You’ll Actually Encounter

We’ve worked on everything from a 1980s Sears chain-drive unit that sounded like a freight train to the latest smart openers with Wi-Fi. But when it comes to remotes, they all fall into three categories. If you don’t know which one you’re dealing with, you’re guessing.

Dip Switch Systems (Old School, Still Around)

These are the ones with a small panel of tiny switches inside the remote and on the opener motor unit. You set them to match exactly—up, down, up, down, like some kind of binary code. They’re simple but insecure. Anyone with the same brand opener can technically open your door if they happen to match the pattern. We still see these in older Atlanta neighborhoods like Virginia-Highland or Grant Park, where the original openers were never upgraded.

The trick here is patience. Those dip switches are small, and if you’re over 40, you’ll want good lighting and maybe a pair of tweezers. Set the remote first, then match the opener. Test it. If it doesn’t work, one of the switches is off by a hair.

Rolling Code / Security+ Openers (Most Common Today)

Starting in the mid-1990s, manufacturers like Chamberlain, LiftMaster, and Genie switched to rolling code technology. Every time you press the remote, it sends a new code from a long list of possible codes. The opener recognizes the next one in sequence. This prevents code grabbing—someone can’t just record your signal and replay it to break in.

The downside? Pairing a new remote requires a specific sequence. Usually, you press a “Learn” button on the opener (often purple, yellow, red, or orange), then press the remote button within 30 seconds. But here’s where people mess up: if the opener’s memory is full of old remotes or keypads, it won’t accept a new one. You have to clear the memory first by holding the Learn button for 6–10 seconds until the LED goes out. Then start fresh.

We’ve had customers tell us “the remote just won’t sync” and it turned out they had 12 old remotes still programmed. The opener has a limit—usually around 40 to 60 devices. Clear it, and suddenly the new remote works.

Smart Openers with Wi-Fi (The New Normal)

These are the ones that connect to your home network and work with apps like myQ or Aladdin Connect. Pairing the remote itself is usually the same as rolling code, but you also need to connect the opener to your Wi-Fi. That’s where things get dicey. If your router is in the basement and the garage is detached, signal strength becomes a real problem. We’ve run CAT5 cables through attics in Buckhead just to get a stable connection for a smart opener.

For the remote part, though, the process is identical to rolling code. The Wi-Fi is separate.

Why Your Remote Won’t Pair (And It’s Not What You Think)

We hear this complaint more than any other: “I followed the instructions, but it still doesn’t work.” Nine times out of ten, the issue is something simple that the manual doesn’t mention.

Battery orientation. Sounds silly, but we’ve opened remotes where the battery was installed upside down by the previous owner. The remote still lights up, but the signal is weak or intermittent. Check the polarity.

Old remotes still in memory. As mentioned, the opener’s memory fills up. If you bought a house and the previous owner left three remotes behind, those are still programmed. Clear the memory before adding yours.

Frequency mismatch. Universal remotes are great, but they must match your opener’s frequency. Most North American openers use 315MHz or 390MHz. Some older units use 300MHz or 310MHz. If you buy a universal remote that only supports 315MHz and your opener is 390MHz, it won’t work. Check the label on the motor unit.

Antenna placement. The opener has a small antenna wire hanging down. If it’s tucked up against the metal housing or wrapped around a screw, the signal range drops dramatically. Straighten it out and let it hang free. We’ve fixed “broken” openers just by doing this.

LED light bulbs. This one surprises people. Some energy-efficient LED bulbs in the opener’s light socket can interfere with the radio frequency. If your remote works only when the light is off, swap the bulb for a standard incandescent or a garage-door-rated LED.

Step-by-Step: How to Pair a Remote the Right Way

We’ll keep this practical. No fluff.

Step 1: Identify Your Opener

Look at the motor unit. Find the brand, model number, and the color of the Learn button (if present). Write it down. If you have a dip switch system, locate the panel.

Step 2: Clear the Memory

For rolling code openers, press and hold the Learn button for 6–10 seconds until the LED turns off. This erases all programmed remotes and keypads. You’ll need to reprogram everything afterward, but it’s worth it for a clean slate.

For dip switch systems, just set the switches to match.

Step 3: Program the Remote

Press the Learn button once (don’t hold it). The LED will turn on solid. Within 30 seconds, press the button on your remote once or twice. The opener lights should flash, or you’ll hear a click. Test it.

Step 4: Test Range

Stand about 20 feet away and press the remote. If it works, great. If not, check the antenna and battery. If the range is poor, consider moving the antenna or installing a signal repeater.

Common Mistakes That Cost Time and Money

We’ve seen homeowners drill holes in their garage walls trying to mount a new sensor when the real problem was a dead remote battery. Here are the ones we see most often.

Not reading the manual. We know, nobody reads manuals. But garage door openers are not all the same. A LiftMaster Learn button sequence is different from a Genie. Spend two minutes with the manual.

Buying the cheapest universal remote. Some $10 remotes work fine. Others are junk. We’ve tested dozens. The better ones—like those from Chamberlain or Genie—cost around $20–$30 and include a compatibility list. Spend the extra few bucks.

Assuming the opener is broken. Before you call for garage door repair in Atlanta, try the simple stuff. Replace the battery. Clear the memory. Check the antenna. We’ve had customers schedule a service call only to cancel after we talked them through a battery swap over the phone.

When a Universal Remote Makes Sense (And When It Doesn’t)

Universal remotes are a solid option if you have multiple brands of openers or want to consolidate three remotes into one. But they’re not perfect.

They work well if: your opener is a common brand (Chamberlain, LiftMaster, Genie, Craftsman) and you buy a remote that explicitly lists your model. They also work for most rolling code systems, as long as the frequency matches.

They fail when: you have an obscure brand like Sommer or Marantec, or an older model that uses a proprietary protocol. Some European openers operate on different frequencies entirely. In those cases, stick with the manufacturer’s remote.

Trade-off: Universal remotes often have fewer buttons and less range than the original. You might lose features like the ability to turn on the opener light separately. For most people, that’s fine. But if you’re picky, get the OEM remote.

Cost Considerations: DIY vs. Professional Help

Let’s be honest about money. A new remote costs between $15 and $40. Programming it yourself takes about 10 minutes. That’s the easy part.

But if you’ve tried everything and it still won’t work, the problem might be deeper. Here’s a rough table of what you’re looking at:

Scenario	DIY Cost	Professional Cost	Notes
Dead battery	$3–$5	$50–$100 service call	Always try this first.
New remote (compatible)	$15–$40	$50–$100 + remote cost	Programming is included in service call.
New remote (universal)	$10–$30	Same as above	Universal may not work with all openers.
Faulty logic board	N/A	$150–$300	Requires opener disassembly and soldering.
Entire opener replacement	$200–$600	$400–$800 installed	If the opener is 15+ years old, replacement is often cheaper than repairs.

When to call a pro: If you’ve cleared the memory, replaced the battery, checked the antenna, and the remote still won’t pair, the issue is likely internal. A technician can test the receiver board with a multimeter and confirm whether it’s dead. We’ve seen cases where a power surge fried the receiver but left the motor functional. That’s not a DIY fix.

Real-World Scenarios from Atlanta

Atlanta’s climate adds its own wrinkles. Humidity and heat can corrode the contacts inside remote batteries faster than in drier climates. We’ve replaced remotes that looked fine but had green corrosion on the terminals. Also, older homes in areas like Inman Park or Decatur often have detached garages with brick construction, which can block signals. In those cases, we sometimes install an external antenna kit that mounts outside the garage.

One customer in Smyrna had a remote that worked perfectly in the morning but stopped every afternoon. Turned out the afternoon sun hit the garage door sensor directly, causing a false obstruction signal. The remote wasn’t the problem—it was the safety sensors. A simple repositioning of the sensors fixed it.

Alternatives You Might Not Have Considered

If you’re tired of fumbling with remotes, there are other options.

Keypad entry. A wireless keypad mounted outside the garage door lets you enter a code to open it. These are great for families with multiple drivers. They pair the same way as a remote.

Smartphone control. If your opener is compatible with a smart hub, you can open and close the door from your phone. Some systems also send alerts when the door opens. This is handy if you’re always wondering whether you left the garage open.

Home automation integration. Systems like Alexa or Google Assistant can be linked to smart openers. Voice commands work, but we’ve found they’re more of a novelty than a necessity. The real value is in scheduling and alerts.

Hardwired wall switch. Sometimes the simplest solution is a wall-mounted button inside the garage. If your remote keeps failing, a wall switch never loses battery.

When the Advice Might Not Apply

If you have a commercial-grade opener or a custom installation, the pairing process can be different. Some high-security openers require a technician to program them with a special tool. Also, if your opener is more than 20 years old, replacement parts may be hard to find. In those cases, we usually recommend upgrading the entire unit. The safety features alone—like auto-reverse and photoelectric sensors—are worth the investment.

And if you’re renting, don’t modify the opener without the landlord’s permission. We’ve seen tenants buy universal remotes that ended up being incompatible, and then they had to pay for a service call to fix it.

Final Thoughts

Connecting a garage door opener to a remote is one of those tasks that looks trivial until it isn’t. The good news is that most issues have simple fixes. Clear the memory, check the battery, verify the frequency, and straighten the antenna. If that doesn’t work, the problem is likely deeper than a remote issue.

We’ve done this long enough to know that sometimes the smartest move is to call someone who’s seen it all before. If you’re in Atlanta and you’ve tried everything, Atlanta Garage Doors can help. We’ve worked on every brand, every type of opener, and every weird problem Atlanta’s weather and old houses can throw at us. Sometimes it’s a five-minute fix. Sometimes it’s a new opener. Either way, you’ll have a working remote and a door that opens when you press the button.

That’s the goal, right?

May 21, 2026

How Do I Sync My Garage Door Opener To My Car?

Most people don’t realize their garage door opener isn’t actually broken when it stops talking to the car. They assume the motor died, the remote finally gave up, or something expensive is about to happen. Nine times out of ten, it’s just a sync issue. A lost connection between the car’s built-in system and the opener’s receiver. We’ve watched homeowners spend an afternoon on the phone with a dealership, or worse, call us out for a service visit, only to fix it with a button press they didn’t know existed.

Syncing a garage door opener to a car is usually a two-minute process. The exact steps vary by vehicle make and opener brand, but the logic is almost always the same: put the car into programming mode, press the learn button on the opener motor, and then pair them. If that doesn’t work, the problem is almost always a rolling code mismatch or an incompatible system.

Key Takeaways

Most pairing failures are caused by rolling code desync, not hardware failure.
The “learn” button on your garage door opener motor is the key to syncing, not the remote.
Newer cars (2016+) often require a specific sequence involving the homelink buttons and the ignition.
If your opener was made before 1993, it likely won’t sync with modern car systems.
A quick reset of the opener motor often solves intermittent connection issues.

The Two-Minute Fix That Works 80% of the Time

We’ve done this in driveways in the middle of August when it’s 95 degrees and the concrete is radiating heat back at you. It’s not complicated, but people skip steps. Here’s the version that works for 90% of modern setups.

First, sit in the car with the engine on. Hold down the two outer buttons on your Homelink (or Car2U) system until the light on the rearview mirror or overhead console starts flashing rapidly. That usually takes about 20 seconds. You’re clearing the memory.

Second, get out and go to the garage door opener motor unit mounted on the ceiling. Look for a button labeled “LEARN,” “PROGRAM,” or “SMART.” It’s usually under the light cover or near the antenna wire. Press and release that button. You now have about 30 seconds to complete the pairing.

Third, get back in the car. Press and hold the Homelink button you want to program. Hold it for about 10-15 seconds. The car’s light should change from slow blinking to a solid light, or it might blink rapidly and then go solid. Release the button. Press it again. The door should move.

That’s it. If the door doesn’t move, you have one of three problems: a rolling code issue, an incompatible frequency, or the learn button didn’t actually activate.

When the Learn Button Doesn’t Respond

We see this a lot. You press the learn button, the little LED next to it blinks, you run back to the car, and nothing happens. The issue is usually timing. That 30-second window is real. If you’re slow getting back in the car, the opener exits programming mode. Try again, but this time have the car’s system already in pairing mode before you press the learn button. That way you only need to press the car’s button once you’re back inside.

Another common mistake is pressing the learn button too briefly. You need to press it until the LED comes on. A quick tap often doesn’t register. Hold it for a full second.

Rolling Codes: Why Your Car Forgets the Opener

This is the technical reason behind most sync failures. Modern garage door openers use something called rolling code technology. Every time you press the remote, the opener and the remote generate a new code based on an algorithm. They stay in sync because both devices know the sequence. But if you press the remote 50 times while out of range (maybe it fell between the seats and the button got mashed), the car’s system might lose its place in the sequence. The opener receiver is waiting for code #1,256, but the car is sending code #1,306. They don’t match, so nothing happens.

The fix is simple: clear both memories and resync. That’s why the first step in the two-minute fix above involves clearing the car’s memory first. You’re resetting the sequence to zero for both devices.

Some cars, especially older models, require you to press the learn button on the opener and then press the programmed Homelink button three times in rapid succession. This tells the car to synchronize its rolling code counter with the opener. Check your vehicle’s manual for this, because it varies by manufacturer.

Older Openers and Incompatible Systems

If your garage door opener was manufactured before 1993, it almost certainly uses a fixed code. That means it transmits the same signal every time. Modern car systems like Homelink don’t support fixed code transmitters for security reasons. You have two options: replace the opener, or buy an external adapter that bridges the gap.

We’ve had customers in older Atlanta neighborhoods like Virginia-Highland or Inman Park who have original openers from the 1980s still running. They work fine with the wall button and the original remote, but they won’t sync to a 2023 SUV. In that case, the most practical solution is a universal gateway adapter. It plugs into the opener’s wall button terminals and creates a modern rolling code signal that the car can understand. It’s about $40 and takes ten minutes to install.

When Your Car’s System Just Won’t Cooperate

Some vehicles are notoriously finicky. European luxury cars, for example, often require the ignition to be in a specific position (not just “on”) and the car to be in park with the parking brake engaged. We’ve seen BMWs that require the engine to be running, while some Mercedes models demand the key be in position two without the engine on. There’s no universal standard.

If you’ve tried the standard procedure three times and it’s not working, try this: hold the Homelink button you’re programming, and while holding it, press and release the remote that originally came with your opener. Sometimes the car needs to “see” the signal from the original remote to learn the frequency and protocol. This is called “training mode” on some Homelink systems.

The Garage Door Repair Trap

Here’s where we see people waste money. They call a garage door repair company thinking the motor is dead. The technician arrives, walks them through the sync process in two minutes, and charges a service call fee. We’ve done it ourselves. It’s not dishonest—the customer called us, we fixed the problem—but it feels bad for everyone involved. The customer pays $75 for what amounts to a button press.

If your door works fine with the wall switch and the original remote, the motor isn’t broken. The issue is the connection between the car and the opener. Save the service call for when the door actually won’t move.

A Quick Comparison of Common Pairing Methods

Here’s a table that breaks down the different approaches based on what equipment you’re working with. Use it as a quick reference.

Situation	Best Approach	Common Mistake	Time Needed
Car with Homelink, modern opener (post-1993)	Clear car memory, press learn on opener, hold car button	Forgetting to clear car memory first	2-3 minutes
Car with Homelink, older opener (pre-1993)	Use a universal gateway adapter	Trying to force a fixed code sync	10-15 minutes with adapter install
Aftermarket remote (visor clip)	Program remote to opener using learn button	Holding remote button too far from opener	1 minute
Car with Car2U system	Same as Homelink, but requires ignition on	Attempting sync with engine off	2-3 minutes
Intermittent connection	Reset opener by unplugging for 30 seconds	Replacing batteries unnecessarily	1 minute

When DIY Makes Sense and When It Doesn’t

Syncing a car to an opener is a legitimate DIY task. There’s no risk of injury, no tools required, and the worst outcome is you waste ten minutes. We encourage people to try this themselves. It’s one of those rare home tasks that actually is as simple as it sounds.

But there are situations where you should stop and call a professional. If you press the learn button and the opener’s LED doesn’t light up at all, the logic board might be dead. If the door moves when you press the wall button but the opener’s light doesn’t flash, the receiver board could be fried. If you smell burning electronics or the opener makes a humming sound without moving the door, that’s a mechanical or electrical failure, not a sync problem.

In Atlanta, we deal with a lot of humidity-related corrosion in older garages. The circuit boards inside openers can develop green oxidation on the solder joints, especially in basements or garages that flood during heavy rain. If your opener is over 15 years old and suddenly stopped responding to everything—remotes, wall buttons, car—it’s probably time for a replacement, not a sync.

The One Thing Nobody Tells You About Opener Compatibility

Not all garage door openers are compatible with all cars. There’s a common misconception that Homelink works with everything. It doesn’t. Homelink is a standard, but manufacturers implement it differently. Some openers use a frequency of 315 MHz, others use 390 MHz, and some newer ones use 433 MHz. If your car’s system operates on a different frequency than your opener, they will never sync. Period.

You can check the frequency by looking at the back of your existing remote or the opener’s motor unit. It’s usually printed on a sticker. If the frequencies don’t match, you need a frequency converter or a new opener. This is rare, but it happens more often with imported vehicles and off-brand openers.

A Final Practical Thought

We’ve been doing this long enough to know that most homeowners just want the door to work. They don’t care about rolling codes or frequency bands. They want to pull into the driveway, press a button, and have the door go up. That’s fair.

If you’ve tried the steps above and it’s still not working, don’t assume the worst. Check the batteries in your original remote. If the remote works but the car doesn’t, the problem is in the car’s system, not the opener. If neither works, the opener itself might need attention. And if you’re in an older home with an opener that predates the Clinton administration, consider upgrading. Modern openers are quieter, safer, and actually compatible with the car you’re driving.

For homeowners in Atlanta, we see this every week. The heat and humidity take a toll on electronics, and a quick sync is usually all that’s needed. But when it’s not, that’s when a professional garage door opener repair makes sense. Just don’t call before you’ve tried the two-minute fix. You might save yourself the service fee.

May 20, 2026

Most Common Garage Door Repairs And Their Costs Near Me

If you’ve ever stood in your driveway staring at a garage door that refuses to budge, you already know the feeling. It’s not just an inconvenience—it’s a disruption to your entire morning routine, and sometimes a genuine security concern. Over the years, we’ve walked countless homeowners through that exact moment of frustration, and the first question is almost always the same: “What’s this going to cost me, and is it something I can fix myself?”

The truth is, most garage door repairs fall into a handful of predictable categories, and the costs vary more than you’d expect depending on the issue, the parts involved, and whether you call a professional or roll up your sleeves. We’ve seen people spend hundreds on a simple fix they could have handled for fifty bucks, and we’ve also seen DIY attempts turn a $200 repair into a $1,200 replacement. Let’s break down what you’re actually paying for, why the prices swing so much, and how to know when it’s time to call someone like Atlanta Garage Doors or another reputable local shop.

Key Takeaways

Broken springs are the most common repair, typically costing between $150 and $350 for professional replacement.
Off-track doors and opener failures often run higher, sometimes exceeding $500, due to labor and part complexity.
DIY repairs can save money on simple sensor alignments or track cleaning, but spring work is dangerous and best left to pros.
Local factors like climate and building codes in Atlanta, GA can affect both repair frequency and cost.

The Spring That Snaps Without Warning

We’ll start with the one that catches everyone off guard. Torsion springs are under immense tension—enough to lift a several-hundred-pound door day after day. When they break, it sounds like a gunshot, and the door usually slams down or refuses to open. It’s startling, and it’s the single most common call we get.

Professional replacement of torsion springs runs somewhere in the $150 to $350 range, including labor. The price depends on the door size, spring type, and whether you need a pair replaced (which we always recommend, because if one broke, the other is likely close behind). Some companies charge less if they’re already in the neighborhood, but be wary of anyone quoting under $100—that usually means they’re cutting corners on spring quality or skipping safety measures.

Extension springs are a bit cheaper, often $100 to $200, but they’re also less common on modern doors. The real trade-off here is safety. We’ve seen homeowners try to replace torsion springs with a pair of winding bars and a YouTube video, and it rarely ends well. The risk of serious injury is high, and frankly, the cost savings aren’t worth it. If you’re in an older home in neighborhoods like Virginia-Highland or Decatur, where many doors are original from the 80s, those springs are ticking time bombs.

When the Door Goes Off Track

An off-track door is one of those problems that seems simple but often isn’t. Maybe you hit the button and hear grinding, or the door sits crooked in the opening. Often, it’s caused by a single roller popping out of the track, which can happen from a bump or general wear.

If it’s just one roller and the track isn’t bent, a technician can usually pop it back in for around $75 to $100. But if the track itself is damaged—bent from a car bumper or corroded from years of Atlanta humidity—then you’re looking at track replacement, which runs $200 to $400 depending on the gauge of steel and whether it’s a standard or custom size.

Here’s where we see a lot of DIY mistakes. People try to force the door back on track with a crowbar or a hammer, which often bends the track further or damages the panels. We’ve walked into garages where a homeowner spent an entire Saturday making things worse, and the final repair cost more than if they’d called us first thing. The rule of thumb is: if the door is more than a few inches off track, or if you see metal shavings or bent sections, stop and call a pro.

The Opener That Just Gives Up

Opener failures are frustrating because they’re often intermittent—the door works fine for weeks, then suddenly stops responding. In our experience, about half the time the problem isn’t the opener itself but something simpler: a blown fuse, a tripped breaker, or a misaligned safety sensor.

Safety sensors, those little eyes near the floor, are a common culprit. If they’re out of alignment because someone bumped a storage box or the brackets loosened over time, the opener won’t close the door. Realigning them is a five-minute job that costs nothing if you do it yourself, or about $50 to $75 if you have a technician do it during a service call.

When the opener motor actually fails, replacement costs range from $250 to $500 for a decent belt-drive unit, including installation. Chain-drive openers are cheaper but noisier, which matters if your garage is attached to a bedroom. We usually recommend belt-drive openers for Atlanta homes because they handle temperature swings better and run quieter. If you’re in a condo or townhouse near Piedmont Park, the noise difference is noticeable.

Rollers and Hinges: The Slow Creep of Wear

Rollers and hinges don’t fail dramatically—they just get louder and rougher over time. If your door sounds like a dying animal every time it opens, the rollers are likely shot. Nylon rollers with sealed bearings are the standard upgrade, costing about $15 to $30 each, plus labor if you have them installed. A full set of ten rollers might run $150 to $250 installed.

The catch is that replacing rollers isn’t always straightforward. Some older doors have riveted hinges instead of bolted ones, which means you need to drill them out. And if the hinges themselves are rusted or bent, you’re looking at another $10 to $20 per hinge. We’ve seen homeowners buy a cheap roller kit online only to discover their door uses an oddball size, wasting both time and money. It’s one of those jobs where buying from a local supplier or having a pro source the parts saves headaches.

Weatherstripping and Seals: The Quiet Money Saver

This one doesn’t get enough attention. Weatherstripping along the bottom of the door and the sides degrades over time, especially in Atlanta’s humid summers. When it cracks or pulls away, you lose energy efficiency, invite pests, and sometimes get water pooling in the garage.

Replacing bottom weather seal is cheap—$20 to $40 for the material—but the installation can be fiddly. Some doors have a T-shaped channel, others use a flat retainer, and getting the old seal out without damaging the door takes patience. Professional installation runs about $75 to $150, and it’s one of those repairs that pays for itself in lower energy bills within a year or two. We’ve had customers tell us their garage felt noticeably cooler after a simple seal replacement.

Cost Comparison: DIY vs. Professional

To give you a clearer picture, here’s a rough breakdown of common repairs and what you might expect to pay. These are ballpark figures based on our experience in the Atlanta market; your actual costs will vary.

Repair Type	DIY Cost (Parts Only)	Professional Cost (Parts + Labor)	Typical Time Required	Risk Level
Torsion spring replacement	$50–$80	$150–$350	1–2 hours (pro)	High (injury risk)
Off-track realignment (simple)	$0 (if you have tools)	$75–$100	30 minutes	Low to moderate
Off-track with bent track	$50–$100 (track section)	$200–$400	1–3 hours	Moderate
Opener replacement (belt-drive)	$150–$300	$250–$500	2–4 hours	Moderate
Roller replacement (set of 10)	$100–$200	$150–$250	1–2 hours	Low
Weather seal replacement	$20–$40	$75–$150	30–60 minutes	Low
Sensor realignment	$0	$50–$75	15 minutes	Very low

The takeaway? Some jobs are genuinely DIY-friendly. Sensor alignment, weather seal replacement, and even roller swaps (if you have the right tools and a helper) are reasonable projects. But anything involving springs, cables, or major track work should be left to professionals. We’ve seen too many garage doors become projectiles.

When Professional Help Is the Only Real Option

There are situations where DIY isn’t just risky—it’s impractical. If your door is a custom size, say for a carriage house or a wider two-car opening, parts can be hard to find locally. We’ve had customers in Buckhead with historic homes where the original door hardware is no longer manufactured, and sourcing replacements takes days of research.

Similarly, if your door has been damaged by a vehicle impact—someone backed into it—the repair often involves both track straightening and panel replacement. Panel replacement alone can run $300 to $800 per section, and matching the color and style of an older door is tricky. In those cases, a professional can assess whether a full door replacement makes more financial sense than repairing a 15-year-old door.

Another scenario: if you live in an area with strict HOA rules or local building codes, like parts of Sandy Springs or Marietta, a DIY repair might not meet code requirements. For example, some municipalities require spring containment cables or specific safety features. A licensed technician will know those requirements; a homeowner probably won’t.

The Hidden Costs of Ignoring Small Problems

One thing we’ve learned over the years is that garage door problems compound. A slightly off-track door that you ignore will eventually damage the rollers, then the hinges, then the opener. What could have been a $100 fix turns into a $600 overhaul. We’ve had customers call us after six months of “living with it” only to find the entire system needs replacement.

The same goes for rust. Atlanta’s humidity, especially in summer, accelerates corrosion on springs and tracks. A little surface rust isn’t a big deal, but if it’s flaking or pitting, it weakens the metal. We’ve seen torsion springs snap because of rust that was visible for months but ignored. A quick inspection every spring and fall—looking for rust, loose bolts, and worn rollers—can save you a lot of money.

Final Thoughts

Garage door repairs aren’t glamorous, but they’re one of those things that affect your daily life more than you realize until something breaks. The most common issues—springs, tracks, openers, rollers—are all fixable, and the costs are manageable if you catch them early. The key is knowing when to grab a wrench and when to pick up the phone.

If you’re in the Atlanta area and dealing with a stubborn door, Atlanta Garage Doors has seen it all, from rusted springs in old Midtown homes to modern openers in new construction near the BeltLine. We’re not here to upsell you on things you don’t need; we’d rather fix it right the first time. And if you’re handy and want to tackle it yourself, at least know the limits of your tools and your patience.

At the end of the day, a working garage door is a small luxury we tend to take for granted—until it’s not working. A little maintenance and a clear understanding of what repairs actually cost go a long way.

May 19, 2026

How To Make A Garage Door Move Faster?
Most people don’t realize how much time they waste waiting for a garage door to open until they’re already late for work. That slow crawl upward can feel like an eternity, especially when you’re sitting in the car with the engine running. The good news is, you don’t need to replace the entire system to get a noticeable speed increase. We’ve worked on hundreds of these situations, and the fix is usually simpler than you’d think.

Key Takeaways
- Adjusting the opener’s limit and speed settings is often the fastest fix.
- Lubrication and track alignment matter more than most people realize.
- Older openers have a hard limit on speed due to motor power and safety regulations.
- A professional should handle any adjustments involving spring tension or electrical work.
The Real Reason Your Door Moves Slow

Most homeowners assume a slow garage door means the motor is dying. That’s possible, but in our experience, it’s rarely the root cause. The more common culprit is friction. Over time, the tracks get slightly bent, the rollers wear down, or the springs lose their balance. The opener has to work harder, so it moves slower to compensate. We’ve seen doors that took nearly 30 seconds to open come back down to 12 seconds just from cleaning and lubricating the tracks.

Another factor is the opener’s internal speed setting. Many modern openers have a “speed” dial or a set of dip switches that control how fast the trolley travels. Manufacturers often ship them at a lower default setting to reduce noise and wear. Nobody tells you that. So your door might be perfectly capable of moving faster; it’s just not set to do it.

How To Adjust The Opener Settings

Find the speed controls

First, locate your opener’s owner’s manual. If you don’t have it, look up the model number online. Most belt-drive and chain-drift openers from brands like Chamberlain, LiftMaster, or Genie have a speed adjustment screw or a set of DIP switches on the motor unit. On some models, it’s labeled “speed” or “force.” On others, it’s hidden behind a plastic cover.

Turn the speed adjustment screw clockwise to increase speed. But here’s the catch: don’t max it out. We’ve seen people crank it to full speed, and the door slams into the stops so hard it shakes the whole frame. That’s bad for the opener and the door. Increase it by one-quarter turn, test it, and repeat until you find a speed that’s noticeably faster but still smooth.

Limit switch adjustments

The limit switches tell the opener when to stop. If they’re set too conservatively, the door will slow down early and creep into position. On most openers, you’ll see two adjustment screws: one for open travel and one for close travel. Turn the open limit screw slightly clockwise to shorten the travel distance. This makes the door stop sooner, so it doesn’t waste time coasting.

Be careful here. If you set the open limit too short, the door won’t open all the way. If you set the close limit too short, it won’t seal against the floor. We’ve had customers call us because their door wouldn’t close all the way, and it turned out they’d bumped the limit screw while cleaning. So mark your original position before you start turning.

When Lubrication Fixes Everything

It sounds too simple, but we’ve seen doors that were practically frozen from lack of lubrication. The rollers squeak, the springs groan, and the opener struggles. A good lithium-based grease on the tracks and a spray lubricant on the hinges can cut opening time by 30% or more. We recommend doing this twice a year, especially in Atlanta’s humid climate where rust builds up fast.

Don’t use WD-40 as a lubricant. It’s a solvent, not a grease. It will wash away whatever lubrication is left and make things worse. Use a silicone-based spray or a dedicated garage door lubricant. Apply it sparingly to the rollers and the track, then run the door a few times to work it in.

The Spring Balance Check

A door that’s out of balance will always move slower. The opener has to fight against gravity instead of just guiding the door. To check this, disconnect the opener by pulling the release cord. Then lift the door manually. It should stay in place at about waist height. If it falls or rises on its own, the springs need adjustment.

This is not a DIY job. Garage door springs are under extreme tension. We’ve seen people lose fingers trying to adjust them. If your door is out of balance, call a professional. Atlanta Garage Doors handles spring adjustments all the time, and it’s one of those jobs where the cost is worth the safety.

Upgrading The Opener

Sometimes the existing opener just isn’t fast enough. Older models, especially those from the 1990s, have motors that top out at around 6 inches per second. Newer openers can hit 12 inches per second or more. If you’ve already lubricated, balanced, and adjusted everything, and the door still feels slow, it might be time for an upgrade.

Look for openers with a “high-speed” or “performance” rating. Belt-drive models are quieter and faster than chain-drive, but they cost more. We’ve installed hundreds of LiftMaster 8500s in Atlanta, and customers consistently comment on how much faster they are than the old units. The difference is night and day.

Common Mistakes We See

The biggest mistake is assuming the problem is always the opener. We’ve shown up to service calls where the customer had already bought a new opener, only to find the real issue was a bent track or a seized roller. That’s a wasted weekend and a few hundred dollars.

Another mistake is ignoring the weather seal. If the bottom seal is dragging on the floor, it creates resistance that slows the door down. Trim it back or replace it. It’s a cheap fix.

People also forget to check the photo eyes. If they’re misaligned, the opener might slow down or reverse unexpectedly, which feels like a speed issue but isn’t. Clean the lenses with a dry cloth and make sure they’re facing each other directly.

When To Call A Professional

If you’ve done the basic adjustments and lubrication, and the door is still slow, it’s worth having someone look at it. There are things we can spot in five minutes that would take a homeowner hours to figure out. For example, we once found a door that was slow because the track had a slight bow in it from a car backing into it. The homeowner never noticed the dent, but it was causing friction on every roller.

Also, if you hear grinding or scraping sounds when the door moves, stop using it. That’s a sign of a mechanical problem that could get worse. We’ve seen rollers lock up completely, and then the door comes off the track. That’s a much bigger repair.

In Atlanta, we deal with a lot of older homes in neighborhoods like Virginia-Highland or Decatur where the original openers are still in place. Those units are often underpowered by modern standards. A professional can tell you whether an adjustment will do the trick or if it’s time for a replacement.

How Speed Affects Safety

There’s a trade-off between speed and safety. Modern garage door openers are required by law to stop and reverse if they hit an obstruction. Faster movement means less time to react. If you max out the speed, the door might not have enough time to reverse before it hits something. That’s why manufacturers set conservative defaults.

We always tell customers to find a balance. A door that opens in 12 to 15 seconds is fast enough for most people. Anything under 10 seconds starts to get risky, especially if you have kids or pets. If you need it faster than that, consider a commercial-grade opener that’s designed for higher speeds with better safety sensors.

Alternatives To Speed Adjustments

If you don’t want to mess with the opener settings, there are other ways to speed things up. One option is to install a wall-mounted opener like the LiftMaster 8500. These mount on the wall next to the door instead of on the ceiling. They use a different mechanism that’s inherently faster and quieter. They also free up ceiling space, which is a nice bonus.

Another alternative is to replace the rollers with nylon ones. Nylon rollers have less friction than steel, and they’re quieter. We’ve seen doors that were consistently slow because the steel rollers had worn flat spots. Switching to nylon solved the problem without any other changes.

You could also consider a high-speed motor upgrade, but that’s usually more expensive than replacing the whole opener. It’s rarely worth it unless you have a custom or historic door that you want to keep.

Real-World Example

We had a customer in Buckhead who called because her garage door took 22 seconds to open. She was convinced the motor was dying. We checked the balance, lubricated the tracks, and adjusted the speed setting on her Chamberlain opener. The door went from 22 seconds to 11 seconds. She was thrilled. The whole thing took about 20 minutes and cost her nothing but the service call fee.

That’s the kind of outcome we see all the time. Most people don’t need a new opener. They just need a little maintenance and a small adjustment. But if you’re not comfortable working with electricity or springs, don’t risk it. Call someone who knows what they’re doing.

Final Thoughts

Making a garage door move faster isn’t complicated, but it does require a methodical approach. Start with the simple stuff: lubrication, track alignment, and balance. Then move to the opener settings. If that doesn’t work, consider an upgrade. And always remember that speed isn’t everything. A door that opens quickly but slams into the stops or reverses unpredictably isn’t worth the time you save.

If you’re in Atlanta and you’ve tried everything but your door is still slow, give us a call. We’ve seen it all, and we can usually get you sorted out in a single visit. No pressure, no upsell. Just practical advice from people who actually work on these things every day.
May 18, 2026

Tag: atlanta garage door

The Simple Path: How Power Actually Gets to the Sensors

Why No Batteries?

The Wiring That Bites People

Tools You’ll Actually Need

Common Mistakes That Cost Time and Money

When the Advice Doesn’t Apply

The Trade-Off Between DIY and Calling a Pro

Cost Considerations

Real-World Scenario: The Case of the Intermittent Sensor

When Professional Help Actually Saves You

A Note on Local Conditions

Table: Sensor Power Troubleshooting at a Glance

The Bottom Line on Sensor Power

The Emergency Release: Your Only Friend in a Blackout

How to Close the Door Once It’s Released

What If the Door Is Stuck Partway Open?

When You’re Outside and Need to Get In

Common Mistakes That Lead to Bigger Repairs

Should You DIY or Call a Pro?

Cost Considerations and Trade-Offs

When Manual Operation Isn’t the Answer

Final Thoughts

Understanding the Emergency Release System

The Step-by-Step Process (When You’re Stuck Outside)

Common Mistakes That Make This Harder Than It Should Be

When This Method Doesn’t Work

The Role of Door Balance and Spring Health

Tools You Might Not Have Thought Of

When to Call a Professional Instead of DIY

Trade-Offs: Manual vs. Automatic Operation

Final Thoughts

What Are Common Sensor Alignment Problems?

Why Sensors Matter More Than You Think

The Most Common Sensor Alignment Problems

Physical Obstruction

Sunlight Interference

Loose or Misaligned Brackets

Wiring and Power Issues

Track or Door Misalignment

When It’s Not the Sensors at All

How to Diagnose Sensor Alignment Like a Pro

When to Call a Professional

Common Mistakes Homeowners Make

Cost Considerations

Alternatives to Consider

Real-World Observations

Final Thoughts

The Reset Sequence That Works 9 Times Out of 10

Why This Works Better Than a Factory Reset

When You Need to Re-Pair the Keypad

Step-by-Step Re-Pairing

A Common Mistake We See All the Time

The Battery Problem Everyone Ignores

How to Test Without a Multimeter

When the Keypad Still Won’t Work

Testing the Opener’s Receiver

Keypad Models and Compatibility

When DIY Makes Sense and When It Doesn’t

The Role of MyQ and Smart Features

A Note on Local Climate

The Bottom Line

The Short Version for Impatient Owners

Understanding What’s Actually Happening Under the Hood

The Biggest Mistake People Make

When the Learn Button Doesn’t Cooperate

Compatibility Issues You Should Know About

Rolling Code vs. Fixed Code: A Quick Breakdown

When to Call a Professional Instead of DIY

What About Aftermarket Adapters and Workarounds

A Practical Comparison of Your Options

What to Do If Nothing Works

The Role of Local Climate and Conditions

Final Thoughts

The Three Types of Openers You’ll Actually Encounter

Dip Switch Systems (Old School, Still Around)

Rolling Code / Security+ Openers (Most Common Today)

Smart Openers with Wi-Fi (The New Normal)

Why Your Remote Won’t Pair (And It’s Not What You Think)

Step-by-Step: How to Pair a Remote the Right Way
