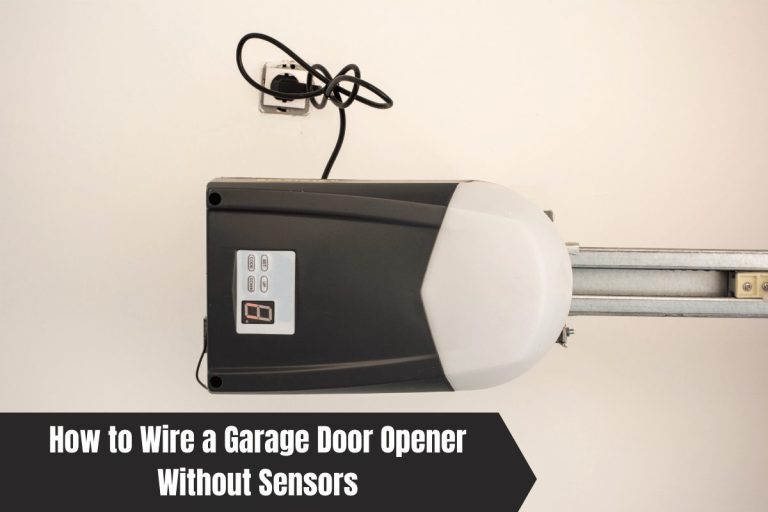

Wiring a garage door opener without sensors is a task that requires careful attention to detail. Although sensors are an essential safety feature, there may be scenarios where you need to bypass them or work on older models without these sensors. In this guide, we’ll walk you through the process step-by-step, ensuring that your garage door opener works smoothly and efficiently.
Remember, while the task is straightforward, it does involve working with electrical components. Safety should always be your priority, and if you’re unsure, consult a professional. At Atlanta Garage Doors Inc., we offer expert services to ensure your garage door is both functional and safe.
Tools and Materials You’ll Need
Before you start wiring your garage door opener without sensors, gather the following tools and materials:
- Screwdriver (Flathead and Phillips)
- Wire stripper
- Electrical tape
- Garage door opener wiring diagram (specific to your model)
- Ladder
- Multimeter
- Wire nuts
- Insulated pliers
- Garage door opener manual
Step-by-Step Guide to Wiring a Garage Door Opener Without Sensors
1: Power Down the Garage Door Opener
Safety first! Begin by disconnecting the power supply to the garage door opener. Unplug it from the outlet or turn off the circuit breaker. This step ensures that you won’t get shocked while working on the wiring.
2: Locate the Terminal Screws on the Garage Door Opener
Using your screwdriver, open the panel on the garage door opener unit to reveal the terminal screws. These screws are typically labeled with numbers or letters that correspond to different components of the opener, such as the motor, wall control, and sensors.
3: Identify the Wires for the Sensors
In most garage door openers, the sensors’ wires are usually colored differently than the other wires. They may be white and black or white and red. Locate these wires and trace them back to the terminal screws.
If you’re wiring a garage door opener without sensors, you’ll need to bypass these wires. To do this, remove them from the terminal screws using your screwdriver.
4: Bypass the Sensor Wires
After removing the sensor wires, you’ll need to create a bypass loop. This can be done by connecting a jumper wire between the two terminal screws where the sensor wires were originally connected. Use a small piece of wire to make this connection, stripping the ends and securing them tightly under the terminal screws. Ensure the connection is solid and won’t come loose.
5: Connect the Wall Control Wires
Next, connect the wall control wires to the appropriate terminal screws. These wires usually run from the wall-mounted button to the opener unit. They are often labeled on both the wall control and the opener. Make sure you attach the wires to the correct terminals, following the color coding provided in your opener’s manual.
6: Reconnect the Power and Test the Opener
Once everything is connected, it’s time to restore power to the garage door opener. Plug it back in or turn on the circuit breaker. Use the wall control to test the garage door opener. If everything is wired correctly, the door should open and close smoothly without requiring the sensors.
Troubleshooting Common Issues
When bypassing garage door opener sensors, you may encounter some issues. Here are some common problems and solutions:
- Garage Door Doesn’t Close Completely: If the door doesn’t close properly, the wiring might be loose or incorrect. Double-check your connections, especially the bypass loop.
- Opener Motor Runs, But Door Doesn’t Move: This could be due to a misalignment in the opener or an issue with the door’s tracks. Ensure everything is aligned and securely fastened.
- Wall Control Doesn’t Work: If the wall control isn’t functioning, check the wiring between the control and the opener unit. Ensure that the wires are correctly connected and that there are no loose connections.
Detailed Wiring
Below is a detailed table that outlines the specific steps and connections needed to wire a garage door opener without sensors.
| Step | Action | Details |
|---|---|---|
| 1 | Power Down | Disconnect power to avoid electrical shock. |
| 2 | Open Opener Panel | Use a screwdriver to access the terminal screws. |
| 3 | Identify Sensor Wires | Look for the colored wires, usually white/black or white/red. |
| 4 | Bypass Sensors | Remove sensor wires and create a bypass loop with a jumper wire. |
| 5 | Connect Wall Control Wires | Attach the wall control wires to the appropriate terminals. |
| 6 | Restore Power | Reconnect the power and test the opener. |
| 7 | Troubleshoot | Resolve common issues like misalignment or loose connections. |
In-depth Answers to Common Questions
How Do I Safely Bypass Garage Door Sensors?
Bypassing garage door sensors can be done safely if you follow the correct procedures. First, ensure that the power is disconnected to avoid any electrical hazards. Locate the sensor wires and remove them from the terminals on the opener. Create a bypass loop by connecting a small piece of wire between the terminal screws where the sensors were connected. This will trick the opener into thinking the sensors are still in place. Remember, this method should only be used if absolutely necessary, as it compromises the safety features of your garage door.
What Are the Risks of Wiring a Garage Door Opener Without Sensors?
Wiring a garage door opener without sensors can pose several risks, including potential injury to pets or children who might be in the path of the closing door. The sensors are designed to prevent the door from closing if something is detected in its path. Bypassing them means that the door could close on objects, animals, or people without stopping. Always consider these risks before proceeding with this task, and consult with professionals like those at Atlanta Garage Doors Inc. to explore safer alternatives.
Can I Reinstall Sensors After Wiring the Opener Without Them?
Yes, you can reinstall sensors after wiring the opener without them. To do this, remove the bypass wire and reconnect the original sensor wires to the correct terminals on the opener. Ensure the sensors are aligned and free of obstructions. Once the sensors are reconnected, test the system to confirm that the sensors are functioning correctly. This will restore the safety features of your garage door opener.
Why Is My Garage Door Opener Not Working After Wiring Without Sensors?
If your garage door opener isn’t working after wiring it without sensors, there could be a few issues. Check the bypass loop to ensure that the connection is secure. Loose connections can prevent the opener from functioning properly. Additionally, verify that the wall control wires are correctly attached to the terminal screws. If everything appears to be connected correctly, but the opener still doesn’t work, there may be an issue with the opener’s motor or other internal components. In such cases, it’s best to consult a professional for further assistance.
Conclusion
Wiring a garage door opener without sensors is possible, but it requires a clear understanding of the process and the risks involved. By following this detailed guide, you can successfully bypass the sensors and ensure your garage door operates smoothly. However, it’s essential to remember that sensors are a crucial safety feature. If you encounter any difficulties or are unsure about the process, don’t hesitate to contact us at Atlanta Garage Doors Inc. for professional assistance. We can help you with all your garage door needs, from installation to repairs, ensuring that your garage is both safe and functional.
For more information on garage door-related topics, such as how to replace garage door rollers or how to adjust garage door springs and cables, visit our website. We’re here to help with any questions or services you might need.
